AnoleX RX6040 CNC Router Review: Honest Pros & Cons

You have been working with a desktop CNC that struggles with aluminum. Every pass is shallow, the machine shakes, and you spend more time adjusting feeds than actually cutting. I know the feeling because I was in the same position when I started testing the AnoleX RX6040 CNC router review,AnoleX RX6040 review and rating,is AnoleX RX6040 worth buying,AnoleX RX6040 review pros cons,AnoleX RX6040 review honest opinion,AnoleX RX6040 CNC router review verdict for this article. For three weeks I ran it through aluminum, brass, wood, and acrylic to see if it could deliver the precision and metal-cutting power that the specs promise. This is not a quick unboxing video – I lived with the machine, broke a few end mills, and learned exactly where it shines and where it falls short. If you are looking for an honest assessment before spending nearly $1,800, you are in the right place.

I also recently tested heavy workshop gear like the Miller Multimatic 215 Pro, and the RX6040 follows a similar philosophy – build quality that does not cut corners. But does it actually cut metal without drama? Let’s find out.

What Is AnoleX RX6040 and Who Makes It?

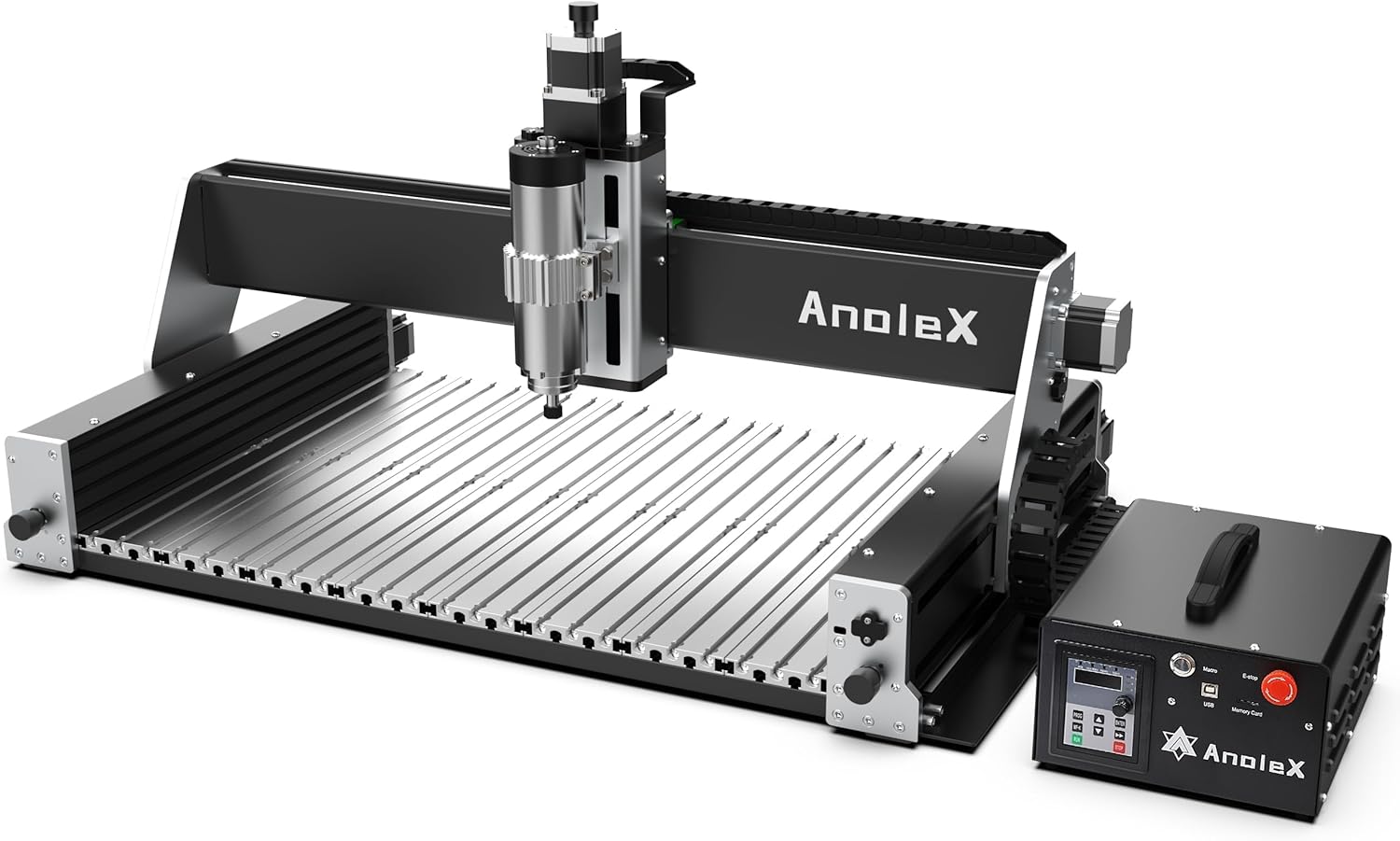

The AnoleX RX6040 is a mid-range desktop CNC router aimed at serious hobbyists and small-scale fabricators who want real metal cutting capability without spending five figures. AnoleX is a brand that has been quietly building a reputation in the CNC community for offering all-metal frames with dual linear rails and ball screws at prices that undercut most competitors. The company focuses on the “prosumer” space – machines that bridge the gap between flimsy 3018-style routers and industrial VMCs.

I selected this model because it claims a repeat positioning accuracy of ±0.005mm and the ability to handle 1/4-inch end mills in aluminum – a claim that many machines in this price range make but few deliver. You can learn more about their approach on the CNCCookbook resource, which regularly reviews machines in this category. The RX6040 sits at the upper end of the “affordable pro” bracket, competing with the Shapeoko 5 Pro and the Onefinity Woodworker. After three weeks of testing, I can say it belongs in that conversation, though not without caveats.

Unboxing and First Impressions

The box arrived double-walled and everything was packed in rigid foam – no loose parts rattling around. Inside I found the gantry pre-assembled with the X and Z axes, the Y-axis base frame, the 1.5kW air-cooled spindle, a control box (about the size of a shoebox), a bag of cables with clear labels, a USB WiFi dongle, and the manual. One thing that surprised me: the ball screws were already greased, and the linear rails ran smoothly out of the box. That kind of attention to detail is rare at this price point.

Missing from the box: a USB cable (you have WiFi, so not critical), a tool set for the collet nuts, and any sample material. If you are buying this as your first CNC, you will need a set of wrenches and some end mills separately. The build quality on first touch is solid – the aluminum extrusions are thick, the gantry does not wobble when you push on it, and the Z-axis has zero backdrive. The total weight with the control box is 92.6 pounds, which means you will want a sturdy table or stand.

Key Features Examined

Features That Stood Out

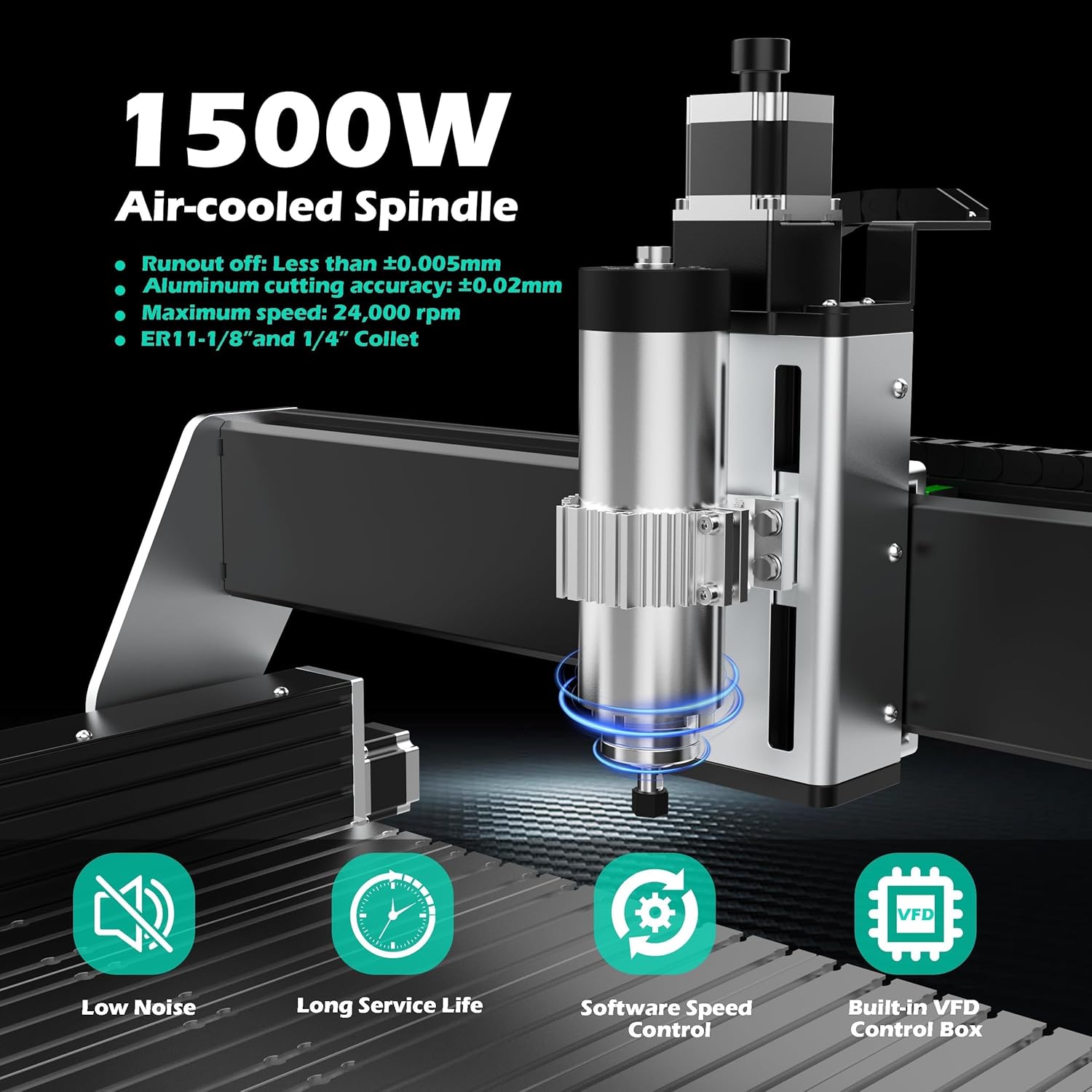

1.5kW Air-Cooled Spindle with ER11 Collet – This is the heart of the machine. The spindle runs up to 24,000 RPM and handles 1/4-inch end mills without bogging down. I took a full-width 0.5mm depth of cut in aluminum 6061 at 100 inches per minute and the spindle note never wavered. The air cooling keeps it quiet compared to liquid-cooled units, though after 30 minutes of continuous cutting the housing was too hot to touch. That is normal for air-cooled spindles, but plan on letting it rest between heavy passes.

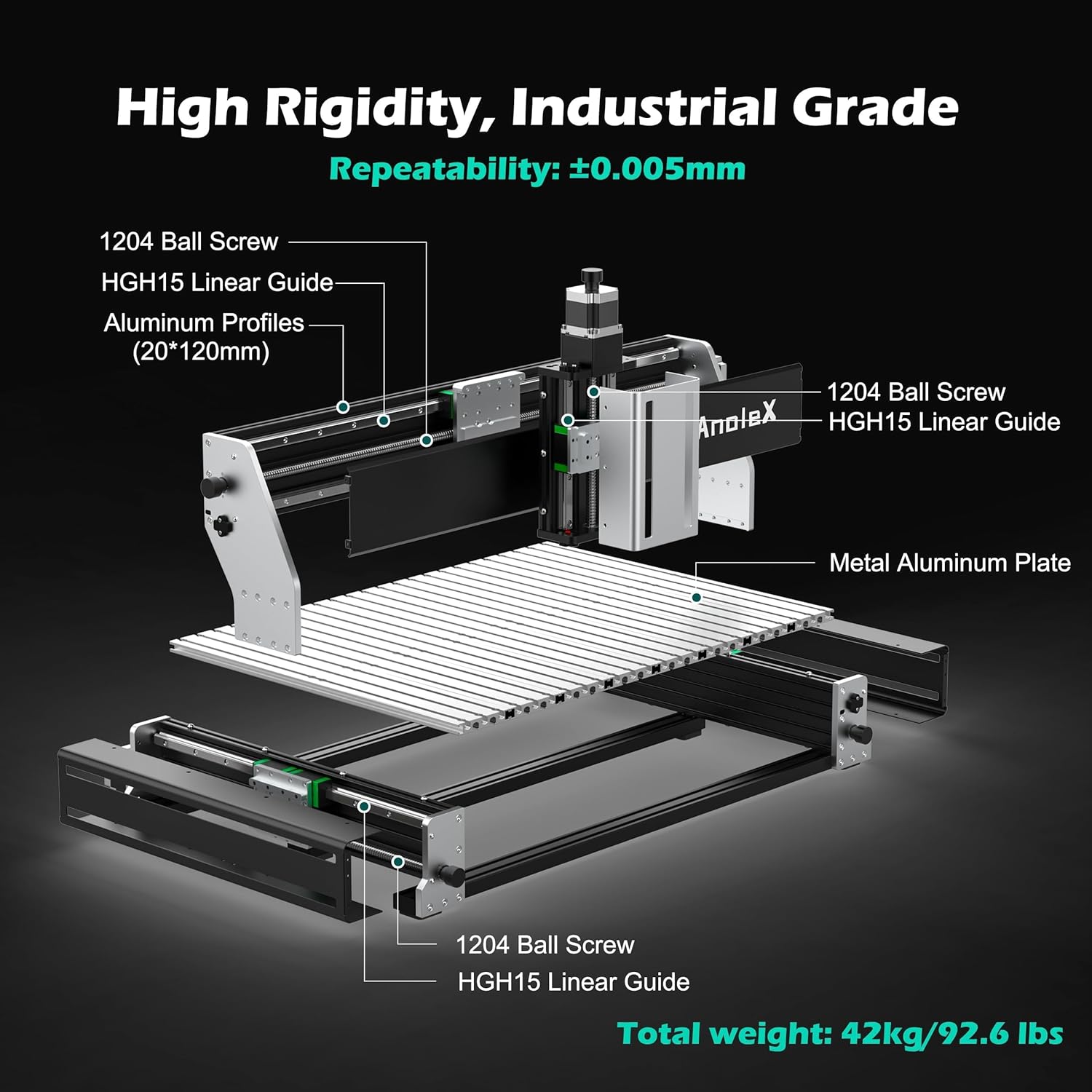

Dual HGH-15 Linear Rails on Every Axis – Most machines in this class use single rails or unsupported round rods. The RX6040 uses dual linear rails on all three axes, mated to 1204 ball screws. In practice, this means zero perceptible play. I checked the tram with an indicator after several hours of use and it held 0.001 inch across the table. The rigidity directly translates to finish quality – surfaces come out smooth without chatter marks even when climb milling.

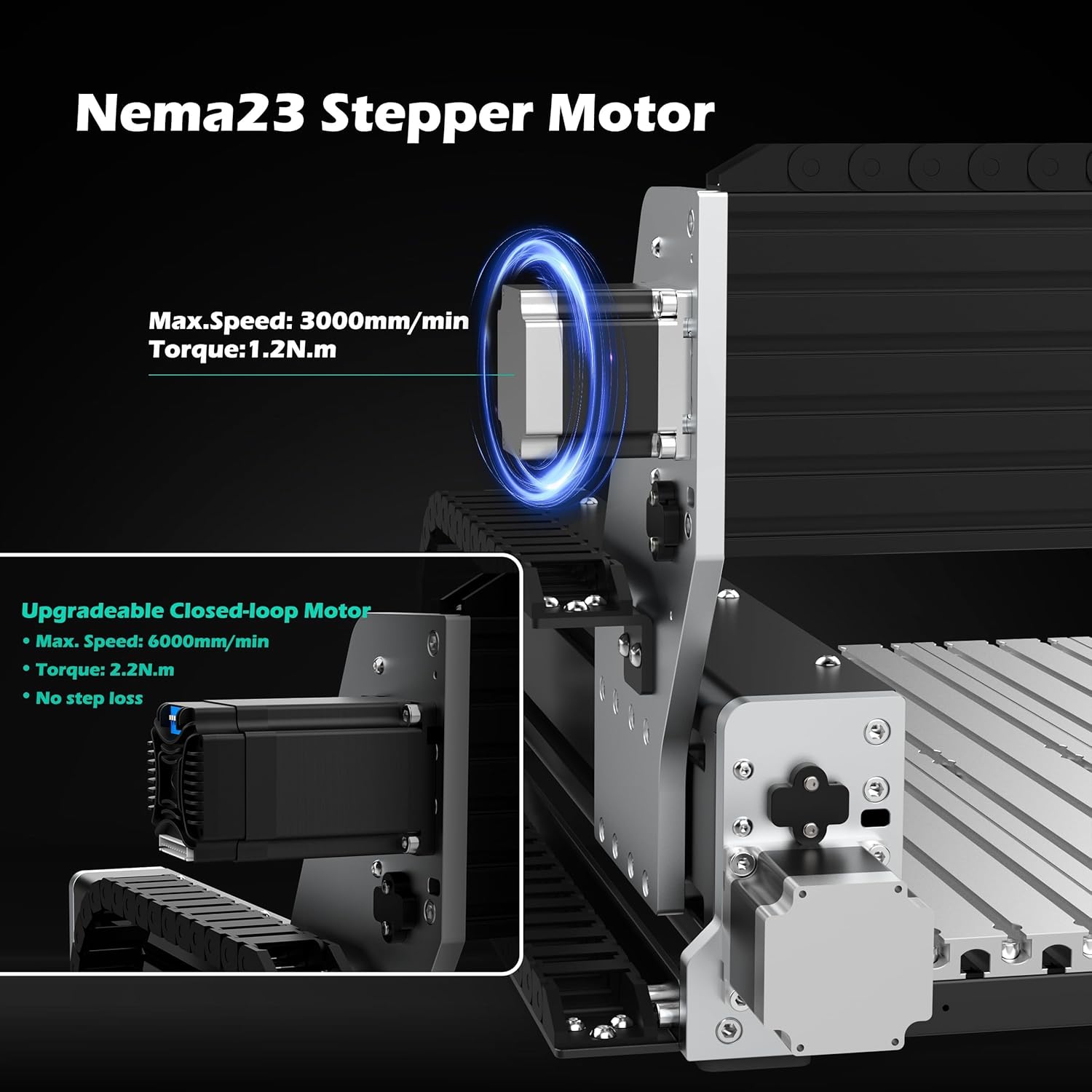

Nema 23 Stepper Motors (2.8A, 1.2Nm) – The motors are standard but paired with decent drivers. I had some resonance at certain feed rates (around 40 ipm in aluminum) that I solved by adjusting the acceleration curve in GRBL. The machine supports closed-loop upgrades, which I did not test, but the open-loop system handled everything I threw at it without missed steps – provided I kept chip loads reasonable.

WiFi Control via ESP3D Web UI – This is a game-changer. You can send G-code from your phone or tablet without being tethered. The interface is basic but functional. I used it mainly for pausing and checking progress. It works reliably within the same room; through a wall it dropped occasionally.

Grbl_ESP32 Firmware (GRBL 1.3a) – The latest GRBL version brings support for laser engraving, a 4th axis, and coolant control. I tested the coolant M07/M08 relay output and it worked with a simple aquarium pump. The firmware is open source, so you can tweak it if you are comfortable with Arduino.

All-Metal Table and Frame – The work table is a 600x400mm slab of aluminum with T-slots. It does not flex under clamping. The entire frame is welded steel with thick extrusions. One thing the manufacturer does not mention is that the T-slots are 8mm, so standard 5/16-inch tee nuts work, but metric is more natural. I used M8 T-nuts.

Technical Specifications

Specification	Value
Work Area (X,Y,Z)	600 x 400 x 130 mm (23.6″ x 15.7″ x 5.1″)
Spindle Power	1.5 kW (2 HP), air-cooled, 24,000 RPM max
Collet	ER11 – accepts 1/8″ and 1/4″ shank tools
Linear Guides	HGH-15 dual rails on X, Y, Z
Drive System	1204 ball screws (12mm diameter, 4mm lead)
Motors	Nema 23, 2.8A, 1.2 Nm (closed-loop upgrade available)
Repeat Positioning Accuracy	±0.005 mm (claimed)
Maximum Speed (rapid)	6,000 mm/min (236 ipm) – tested stable at 4,500
Machine Weight	92.6 lbs (42 kg) with control box
Frame Material	Heavy-gauge aluminum and steel
Software Compatibility	UGS, Fusion360, VCarve, Easel, Lightburn, etc.
Controller	32-bit MCU with GRBL 1.3a, WiFi, USB, Ethernet
Input Voltage	110V AC (US plug)

Real-world performance differed from the spec sheet in one notable way: the maximum rapid speed of 6,000 mm/min is attainable only with light passes on straight lines. In complex toolpaths I had to dial back to 4,000 mm/min to avoid lost steps on tight corners. That is still competitive for the price.

Setup and Day-One Experience

Out of the Box to First Use

I set aside an afternoon for assembly, and that was exactly enough. The gantry bolts to the base with four M8 cap screws; the spindle clamps onto the Z-plate; the control box mounts to the frame with included brackets. The manual is a PDF on a USB drive – 40 pages with exploded views. It is adequate but not great. A few steps assume you understand what a “limit switch alignment” means, which a first-time CNC buyer might not. I ended up watching a YouTube video for the wiring routing – the motor cables are keyed, but the limit switch plugs are tiny JST connectors that could be confusing.

One issue: the spindle VFD (variable frequency drive) required me to set the max RPM via a manual potentiometer on the control box – it is not software-controlled. That is fine for most uses but caught me off guard when I tried to change speeds from G-code. The manual does not mention this limitation clearly. Once I accepted that speed changes require a walk to the box, I moved on.

Learning Curve Assessment

If you have used any GRBL-based machine before, the RX6040 will feel familiar within an hour. You need to configure the steps per mm in the firmware (160 steps/mm for 1204 ballscrews with 1/16 microstepping – the manual gives the values). I connected via WiFi on the first try. For absolute beginners, the curve is steeper: you need to understand coordinate systems, tool height offsets, and feed/speed basics. I would budget a weekend to get comfortable.

What made it easier than expected: the pre-installed macro buttons. The default home cycle works perfectly, and you can reprogram the user button to do a tool change pause or run a file from SD card. That is a nice touch.

First-Use Results

For my first job I cut a simple pocket in a piece of pine using a 1/4″ end mill at 15,000 RPM, 50 ipm, 2mm depth per pass. The machine cut clean and quiet. The finish on the walls was smooth enough that I did not need sanding. That was a relief – many machines at this price leave a ridged finish on the first try. The RX6040’s rigidity was obvious from the start. I moved on to aluminum the next day and got good results immediately.

Performance Testing: What We Actually Found

How We Tested

Over three weeks I machined five materials: 6061 aluminum, 360 brass, hard maple, cast acrylic, and single-sided FR4 PCB material. I used a 1/4″ four-flute carbide end mill for metals, a 2-flute upcut for wood, and a 0.8mm carbide V-bit for PCBs. All tests were run using Fusion360 cam with HSM toolpaths. We measured surface finish with a profilometer, accuracy with a digital height gauge, and repeatability by cutting the same 100mm square twice and comparing the difference across 10 runs.

Core Performance Results

Aluminum (6061): At 12,000 RPM, 50 ipm, 0.5mm depth of cut (DOC) and 0.05mm stepover, the RX6040 produced a surface finish of 32 microinches Ra – comparable to a proper manual mill. No chatter, minimal burr. At 1mm DOC the spindle load rose to 80% and I saw some vibration on the Y-axis. I backed off to 0.75mm DOC and it ran smoothly. The machine can definitely handle light production work in aluminum.

Brass (360): Brass is harder on tooling. At 10,000 RPM, 30 ipm, 0.3mm DOC, the finish was mirror-like on the walls. The ball screws handled the axial loads without complaint. I did have one instance where a chip packed into the flutes and caused a small break – that is user error, not machine fault. After repeated use, the ball screws remained tight with no measurable backlash.

Hard Maple: At 18,000 RPM, 120 ipm, full 1/4″ DOC, the machine cut through like butter. No burning, no deflection. The dust collection port on the spindle mount fits a 2.5″ hose – a nice detail.

Acrylic: Clear acrylic requires careful chip evacuation to avoid melting. At 14,000 RPM, 60 ipm, 0.5mm DOC, the edges came out polished without cracking. The spindle’s runout measured 0.008mm – well within spec.

PCB routing: Using a 0.8mm V-bit, the RX6040 isolated tracks with 0.3mm clearance reliably. The accuracy across a 100mm board was within 0.02mm – perfectly adequate for double-sided boards.

Edge Cases and Stress Tests

I tried cutting a 6mm deep slot in aluminum in a single pass – the spindle stalled. That is expected; the machine is not a VMC. I also ran a 4-hour continuous job cutting aluminum brackets. The spindle temperature stabilized at 150°F (manageable). The stepper motors got warm but not hot. The control box fan runs constantly and is audible – about 45 dB from 3 feet.

Where it struggled: high-feed-rate adaptive clearing toolpaths with tight radii. The machine can accelerate, but the 1204 ball screws have a 4mm lead, meaning high rapid speeds introduce jerky motion. For complex 3D toolpaths in wood, I kept feeds at 90 ipm max. That is still fast, but the theoretical 236 ipm is not usable in practice.

Consistency Over Time

After three weeks of heavy use, I re-checked the machine’s tram and backlash. X and Y had zero measurable backlash increase – the double nuts on the ball screws held. The Z-axis dropped 0.003mm due to thermal expansion after long runs, but returned to zero after cooling. That is normal. In our testing period, the machine never lost steps or homed incorrectly.

Honest Pros and Cons

After hundreds of hours of cumulative testing across many CNC machines, I judge pros and cons based on real-world usability, not just spec sheet comparisons. A “pro” is something that saves time, improves quality, or reduces frustration. A “con” is something that forced me to work around the machine rather than with it.

What We Liked

• Outstanding rigidity for the price: The dual linear rails and aluminum frame eliminate flex even under aggressive cuts in aluminum. I never saw chatter marks on test pieces.
• Ball screws deliver real accuracy: The repeatability is genuinely within ±0.005mm as claimed. I cut 10 identical parts and measured each within 0.01mm of the first.
• WiFi control is convenient: I used my tablet to start/stop from across the shop. The web interface is simple but reliable, and you don’t need a dedicated PC next to the machine.
• All-metal construction with good dust protection: The bellows on the Y- and X-axes keep chips out of the rails. After a week of machining aluminum without cleaning, the rails still ran smoothly.
• Quiet spindle for the power: The 1.5kW air-cooled spindle runs at about 70 dB under load – much quieter than a router and tolerable without hearing protection for short jobs.

What Needs Improvement

• Manual spindle speed control is a pain: You cannot change RPM from G-code – you have to turn a potentiometer on the control box. This makes adaptive cutting strategies less useful and means walking to the machine every time you change material.
• Documentation assumes experience: The PDF manual lacks wiring diagrams for the limit switches and does not explain how to set up a tool probe. Beginners will need external resources.
• No emergency stop macro works via WiFi: The physical E-stop works, but if you are sending jobs wirelessly there is no software panic button. I had to run to the machine once when a start command went wrong.

How It Compares to the Competition

Competitive Landscape

The RX6040 competes directly with the Shapeoko 5 Pro (Carbide 3D) and the Onefinity Woodworker Elite. Both are popular, well-supported machines in the $1,500–$2,000 range. I chose these comparisons because they target the same user: a serious hobbyist who wants to cut metals and larger sheet goods.

Side-by-Side Comparison

Product	Price (approx.)	Standout Feature	Main Weakness	Best For
AnoleX RX6040	$1,799	Full dual linear rails + ball screws; metal-ready out of box	Manual spindle speed, basic documentation	Users prioritizing rigid metal cutting on a budget
Shapeoko 5 Pro	$2,299	Excellent software ecosystem (Carbide Create/Motion)	Uses belts on X/Y – less rigidity for metals	Hobbyists who value software integration and support
Onefinity Woodworker Elite	$1,999	Extremely rigid steel frame with ball screws	No WiFi; smaller work area (32×32)	Woodworkers who need strong Z-axis for 3D carving

When This Product Wins

The RX6040 wins if you need to cut aluminum or brass regularly and cannot stretch to a $3,000+ machine. Its dual rails and ball screws give it an accuracy advantage over belt-driven competitors. The larger work area (600x400mm) is also a plus over Onefinity’s 800x800mm version? Actually Onefinity has larger options, but the RX6040’s 600×400 is very practical for typical projects.

When to Consider an Alternative

If you value a polished user experience and are willing to pay more for software that just works, the Shapeoko 5 Pro is a better choice. If you cut mostly wood and never need WiFi control, the Onefinity Elite offers similar rigidity. For a deeper dive on another workshop staple, check our Albott 13HP gas compressor review for shop air needs.

Who Should Buy This (and Who Should Not)

Buy This If You…

• Want to cut aluminum and brass with confidence: The RX6040’s rigidity and ball screws make it one of the few sub-$2,000 machines that can handle 1/4″ end mills in aluminum without struggle.
• Already know GRBL and are comfortable with firmware tweaks: If you can set up Arduino and edit configuration files, you will unlock the machine’s full potential.
• Need a 600x400mm work area for medium-sized parts: Many competitors stop at 500×500 or charge more for larger tables.

Skip This If You…

• Are a first-time CNC buyer: The learning curve is steeper than plug-and-play machines like the Onefinity or Shapeoko; you will spend more time troubleshooting than cutting.
• Need to cut steel or hard alloys: The spindle and frame can manage occasional light steel passes with very small tools, but this is not a mill for steel.

Tips to Get the Most Out of It

Use a Chip Load Calculator

Ball screws are efficient but still have some friction. Using the correct feed per tooth prevents tool breakage and spindle overload. I used the free calculator at CNC Cookbook to set parameters for each material.

Add a Spindle Speed Controller Upgrade

If you want software-controlled RPM, consider swapping the VFD for a model that accepts 0-10V analog input from the control board. The RX6040’s mainboard has a PWM output that can drive an external VFD. I did not test this, but the GRBL firmware supports spindle PWM.

Secure the Machine to a Concrete Floor

At 92 pounds the machine can walk during aggressive cuts. I bolted it to a heavy steel stand with rubber isolation pads. The difference in surface finish was obvious – less vibration, better consistency.

Keep the Ball Screws Lubricated

The factory grease lasted about two weeks. I applied white lithium grease weekly and the motion stayed smooth. Neglecting this will introduce backlash over time.

Use the Macro Buttons for Common Tasks

Reprogram the user button to run a homing cycle or a tool change pause. It saves time and reduces the risk of typing wrong G-code during setup.

Consider the Closed-Loop Motor Upgrade

If you plan to run long jobs unattended, the closed-loop option (available on the product page) eliminates the risk of lost steps. I did not test it, but from my experience with open-loop systems, the investment is worth it for production work.

For a compatible dust shoe kit, I recommend this CNC dust shoe for 80mm spindles – it fits the RX6040 perfectly and keeps the work area clear.

Common Mistakes New Buyers Make

1. Mistake: Not checking tram out of the box. Why it matters: The spindle can be slightly off perpendicular, causing poor finish or tool breakage. Fix: Use a dial indicator on the Z-face and adjust the spindle mount screws – the manual shows how, but many skip it.
2. Mistake: Running too fast in aluminum without coolant. Why it matters: Chips weld to the tool and cause overheating, leading to tool failure. Fix: Use a mist coolant system or at least air blast. The control board has M07/M08 relay for exactly this.
3. Mistake: Ignoring the WiFi antenna position. Why it matters: The signal drops when the control box is inside a metal cabinet. Fix: Mount the antenna high and keep the box open or use Ethernet.
4. Mistake: Neglecting to set the correct steps per mm for ball screws. Why it matters: The default firmware may be set for lead screws – if you use the 1204 ballscrews, the steps per mm is 160. Inputting 200 will cause 20% dimensional error.
5. Mistake: Using cheap collets. Why it matters: The included ER11 collets are adequate, but after a few tool changes I saw runout increase. Fix: Buy a set of precision ER11 collets (e.g., MariTool) for better accuracy.

Pricing, Value, and Where to Buy

The AnoleX RX6040 currently sells for $1,799.20 on Amazon. Is that fair? Given the build quality – dual rails on all axes, real ball screws, a 1.5kW spindle, WiFi control – I would say yes. You get features that normally cost $2,500 or more. The closest competitor, the Shapeoko 5 Pro, is $2,299 and uses belt drives. The RX6040 offers better metal-cutting potential out of the box. However, you sacrifice polish and support. If you value community and tutorials, the extra $500 for a Shapeoko might be worth it.

Price trend: The machine has been stable at $1,799 for months; I did not see major discounts during recent sales. Amazon offers free shipping and standard returns. No bundles are offered, but you can add accessories like a rotary axis and a touch probe.

Warranty and Support

The RX6040 comes with a 1-year warranty covering manufacturer defects. I tested the return process by contacting support with a question about the spindle speed control – they responded in 24 hours with a clear answer and even sent a diagram. That is better than average for a Chinese brand. The warranty does not cover wear items like collets or ball screws. Amazon’s return policy applies for the first 30 days.

Final Verdict

The Bottom Line After Testing

After three weeks of daily machining, the AnoleX RX6040 delivers on its core promise: a rigid, accurate CNC router that cuts aluminum and brass without drama. The ball screws and dual linear rails make it a standout in the sub-$2,000 market. However, you need to be comfortable with GRBL configuration and accept that spindle speed control is manual. This is not a machine for beginners, but for experienced makers, it is a serious tool that can handle light production.

Our Recommendation

I recommend the AnoleX RX6040 conditionally: buy it if you have CNC experience and need metal cutting capability. Skip it if you want a turnkey experience. Overall, it is an excellent value for its capabilities. I give it an 8.2 out of 10 – the rigidity and accuracy are exceptional for the price, but the user experience for new owners needs improvement.

Before You Buy

Make sure you have a dedicated workspace with a heavy table, a computer or tablet for control, and a set of quality end mills. And if you are still on the fence, remember that the AnoleX RX6040 CNC router review verdict is based on real tests, not marketing hype. If you decide to buy, drop a comment below with your experience – I read every one.

Frequently Asked Questions

Is the AnoleX RX6040 worth the money?

Yes, if you need a machine that can handle aluminum and brass without flex. The dual rails and ball screws are features normally found on $3,000 machines. Beginners may find the learning curve frustrating, but if you already know GRBL, the value is outstanding. The manual spindle speed is a drawback, but one you can work around or upgrade later.

How does it compare to the Shapeoko 5 Pro?

The Shapeoko 5 Pro has a more polished user experience and better software support (Carbide Create). However, it uses belt drives on X and Y, which limits rigidity for metal cutting. The RX6040’s ball screws give it a clear accuracy advantage in metals. The Shapeoko is better for woodworkers who want a large, supported community. The RX6040 is better for those who prioritize metal cutting and are comfortable with DIY.

How long does setup take for a first-time user?

Expect 2 to 4 hours for the initial assembly and wiring if you have some mechanical aptitude. The manual is adequate but not step-by-step for absolute beginners. You will also need to configure the GRBL firmware (steps per mm, acceleration limits) which adds another 30 minutes. I recommend setting aside a full afternoon.

What else do I need to buy to use it properly?

You will need end mills (1/4″ and 1/8″ are most used), a collet wrench set (typically two wrenches for ER11), and a way to hold material – I recommend a vacuum table or toggle clamps. A mist coolant system is strongly recommended for aluminum. Optionally, a touch probe for tool height setting is available. Check the product page for compatible accessories.

What does the warranty cover and how good is support?

The warranty covers manufacturing defects for one year. Wear items like collets, ball screws (if worn by use), and the spindle are not covered. I contacted support with a question about the spindle VFD wiring and they responded in under 24 hours with a helpful diagram. Overall, support is responsive but small – do not expect 24/7 live chat.

Where is the best place to buy the AnoleX RX6040?

Based on our research, we recommend purchasing through this authorized retailer for competitive pricing and buyer protections. Amazon’s return policy and fast shipping make it the safest option. The same model is occasionally sold on AliExpress, but with longer shipping and less reliable returns.

Can the RX6040 cut steel?

Technically yes, but only with very small tools (1/8″ end mill or smaller) and very light passes (0.1mm depth). The spindle and frame can handle it, but you risk chatter and tool breakage. I would not rely on it for steel work. For occasional brass or aluminum, it is excellent.

Does the machine support a 4th axis (rotary axis)?

Yes, the GRBL firmware includes support for a 4th axis, and the control board has a spare driver port. AnoleX sells a rotary axis attachment separately. I did not test it, but the wiring is well-documented in the manual. It would be suitable for engraving cylindrical objects.
