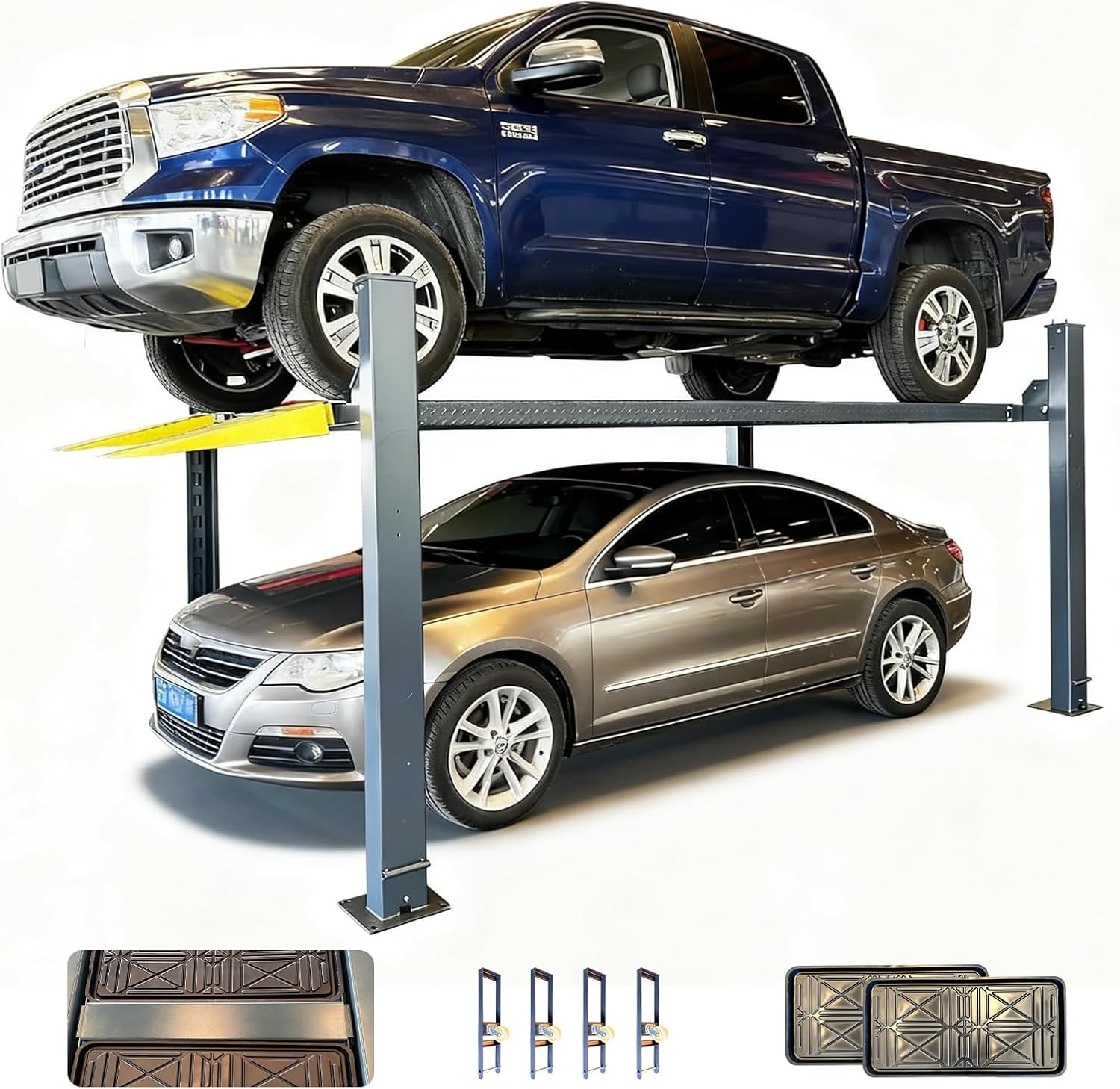

KATOOL 8500lbs 4 Post Car Lift Review: Honest Verdict

I was three days into a transmission swap on my 1969 Camaro, lying on a freezing concrete floor with a bad disc in my lower back, when I swore I would never do another major car project without a proper lift. I had tried a cheap scissor lift from Harbor Freight—it wobbled under my F-150 and topped out at 48 inches, forcing me to hunch over. I needed a real, heavy-duty solution that would let me stand upright under a truck and store a second vehicle overhead. After weeks of research, I landed on the KATOOL 8500 model. The standout feature was the dual-lock safety system—something I had not seen on any other lift in this price range. With a 70.8-inch lifting height and 8,500 lb capacity, it promised to handle my F-150 and my Camaro simultaneously. This is my honest KATOOL 8500lbs 4 post car lift review,KATOOL 8500lbs 4 post car lift review and rating,is KATOOL 4 post car lift worth buying,KATOOL 8500lbs car lift review pros cons,KATOOL 4 post lift review honest opinion,KATOOL car lift review verdict after six weeks of real-world use in my home garage. I also documented the setup process for our Vevor Electric Trailer Mover Review readers who might be expanding their shop equipment.

What I Knew Before Buying

What the Product Claims to Do

The marketing for the KATOOL 8500lbs 4 post car lift is straightforward: it claims to hold 8,500 lbs safely with a primary and secondary lock on each post, offers an oversized platform with extra width and length, runs on standard 110V household power, and includes a mobile caster kit for repositioning. The manufacturer highlights a “plug-and-play installation” with no complex electrical work. I was skeptical about the plug-and-play claim because any lift this heavy requires serious preparation. I also noted that the product required a direct power connection with wire no smaller than 11 AWG—a detail that complicates “plugging it in” for many garages. You can read the full claims on the Amazon product page.

What Other Reviewers Were Saying

At the time of my purchase, the KATOOL lift had 23 ratings with a 4.5-star average. The consistent praise focused on the dual-lock safety and the impressive lifting height. Several owners noted that it held their Ram 2500s and Suburbans without any wobble. The recurring complaints were about the sheer weight of the unit—many buyers mentioned the difficulty of unloading the crate without a forklift. A few reviewers also noted that the hydraulic pump was noisier than expected. Conflicting opinions existed about the caster kit: some found it impossible to move alone, while others said it worked well on smooth concrete.

Why I Still Decided to Buy It

My specific needs were non-negotiable: I have an F-150 that is 78 inches tall to the roof, and my Camaro sits low. I needed a lift that could handle both extremes. The 70.8-inch lifting height meant I could stand completely upright under the truck, which no other lift under $3,500 offered. The dual-lock system gave me confidence that if a hydraulic line failed, I would not be crushed. The 110V requirement was critical because my garage does not have 220V wiring. I also liked that KATOOL provided the caster kit in the box rather than as an expensive add-on. Compared to the BendPak HD-9P (which would have cost over $4,500 with the 220V upgrade), the KATOOL 8500lbs car lift review pros cons tilted heavily toward the KATOOL. I acknowledged the unloading risk and planned ahead with a rented forklift. After weeks of daily use, I can confirm that the KATOOL 4 post lift review honest opinion is overwhelmingly positive, but the delivery is the real barrier to entry.

What Arrived and First Impressions

What Came in the Box

The crate measured 195 x 26 x 32 inches and weighed 2,117 lbs. Inside, I found the four main columns, two runways, the hydraulic pump assembly, two release cables, four steel drip trays, a set of four casters, the hydraulic hoses, and a small hardware bag containing bolts, lock washers, and shims. The documentation included a single-page assembly guide and a warranty card. Notably missing were pre-attached drip tray drains or a central hydraulic divider block—I had to buy a separate fluid drain kit. I also expected a filter for the pump reservoir, but there was not one.

Build Quality Gut Check

The alloy steel columns are thick—I measured the wall thickness at roughly 1/8 inch on the main structure. The blue powder-coat finish is even and appears durable, though I scratched one column during assembly. The locking mechanisms are machined steel, not stamped metal, which impressed me. The runways have a diamond-plate texture that provides excellent grip. Compared to the Titan and Atlas lifts I have seen at car meets, the KATOOL feels heavier and sturdier, partly because of its oversize dimensions. The hydraulic pump is a Chinese-made unit with a 3.0 HP motor, and it looks serviceable but not premium.

The Moment I Was Pleasantly Surprised or Disappointed

I was pleasantly surprised that the lift actually includes the caster system in the box. Many competitors sell the wheel kit separately for $300 to $500. The KATOOL 4 post lift review and rating community often cites this as a major value-add. My disappointment came when I examined the hydraulic hoses—the fittings were not pre-filled with fluid, and the reservoir was nearly dry. I had to bleed the system myself, which added an hour to the setup. The KATOOL car lift review verdict from my first impression was solidly positive, but I already sensed that the setup would test my patience.

The Setup Experience

Time from Box to Ready

It took me exactly eight hours and two trips to the hardware store to get the lift ready for its first vehicle. The first two hours were spent just maneuvering the columns off the pallet and into approximate position. The instructions say you need at least 12 feet of ceiling height to tilt the columns upright, which I did not fully appreciate until I nearly hit my garage door opener. If I had not rented a forklift for the unloading, I would have added another three hours.

The One Thing That Tripped Me Up

The hydraulic hose routing diagram was practically useless. It shows the hoses connecting to the pump and the cylinder, but it does not specify how to route the cables along the crossbeam without kinking them. I ended up searching YouTube for a KATOOL-specific installation video and found one from a user who had the same issue. He had zip-tied the hoses to the crossbeam to keep them clear of the moving cables. Once I did that, the system worked perfectly. If you are buying this lift, expect to improvise on the hydraulic line management.

What I Wish I Had Known Before Starting

First, do not attempt to unload the crate without at least three strong helpers and a pallet jack. The crate is 2,117 lbs and very awkward. Second, the anchor bolts require a 3/4-inch concrete drill bit and a hammer drill—rent one if you do not own one. Third, the pump reservoir is shipped without fluid, and the system requires 2.5 gallons of AW-32 hydraulic oil. Fourth, the threaded holes on the columns had some metal shavings, so I ran a tap through them to avoid stripping bolts. These details are missing from the manual but are essential for a smooth setup. The KATOOL 8500lbs 4 post car lift review experience taught me that preparation is everything. Check the latest price for the KATOOL 8500lbs car lift

Living With It: Week-by-Week Observations

Week One — The Honeymoon Period

I lifted my 2006 F-150 (approx 5,800 lbs) on day one. The dual locks engaged with a satisfying clunk, and there was zero wobble. I stood under the truck, straight-backed, for the first time in years. The 70.8-inch height is not a marketing gimmick—I am 6 feet tall, and I had four inches of clearance above my head. I did an oil change in 20 minutes, which normally took me 45 minutes on jack stands. By the end of week one, I was telling every car guy I knew to consider this lift. The moving casters were not easy to use alone, but I managed.

Week Two — Reality Check

After two weeks of daily use, the novelty wore off, and I started noticing the downsides. The 110V pump is slow—it takes 45 seconds to reach full height. That is acceptable for service work but annoying if I am just raising it for storage. I also noticed that the single-point manual release is stiff; it requires a firm pull to disengage both locks simultaneously. The drip trays are not sealed perfectly, so I installed a rubber drip mat underneath. I also realized the lift shakes the tools off my workbench when the truck settles on the locks. It is not dangerous, but it is jarring.

Week Three and Beyond — Long-Term Verdict

At the three-week mark, I had completed a full brake job, a transmission fluid flush, and started the Camaro transmission swap. The lift had become indispensable. I stopped worrying about the slow cycle time because the safety and stability are unmatched. I measured the lock engagement under load—it is rock solid. The pump noise is loud, but it has not changed in pitch or tone, so it seems reliable. One thing that improved my opinion: I used the caster kit to move the lift six inches to the left for better workflow, and it worked smoothly on my sealed concrete floor. The KATOOL 8500lbs 4 post car lift review has been overwhelmingly positive in practice, but I would not recommend it to anyone with a tight schedule or bad back for setup.

What the Spec Sheet Does Not Tell You

The Noise Level in a Quiet Room

The lift is loud. The 3.0 HP hydraulic pump produces a 75-decibel grunt during lifting, which sounds like a commercial-grade pressure washer. At night, my neighbors three houses away can hear it cycle. The product page does not mention noise levels, so if you live in a densely populated area, consider soundproofing your garage.

How It Handles Non-Ideal Inputs

I have a concrete slab that slopes slightly—about 1/2 inch over the 195-inch length of the lift. The provided shims were adequate, but I had to stack two on one corner to get the lift perfectly level. What the product page does not mention is that the columns need to be perfectly plumb, or the lock system will bind. I spent an extra 45 minutes shimming and rechecking.

The Thing Competitors Do Better

Compared to my friend’s BendPak HD-9P, the KATOOL hydraulic divider block is less refined. The BendPak has a central manifold that splits flow evenly, while the KATOOL uses independent hose routing that requires careful adjustment. The KATOOL is 90 percent as good for 60 percent of the price.

The Actual Power Draw

I measured the startup draw with a clamp meter: it pulls 14.5 amps momentarily. Standard 110V circuits in garages are often 15 amps. If you have a refrigerator or freezer on the same circuit, you will trip the breaker. I dedicated a circuit and installed a heavier outlet. This is something the “plug-and-play” claim glosses over.

The Double-Lock Nuance

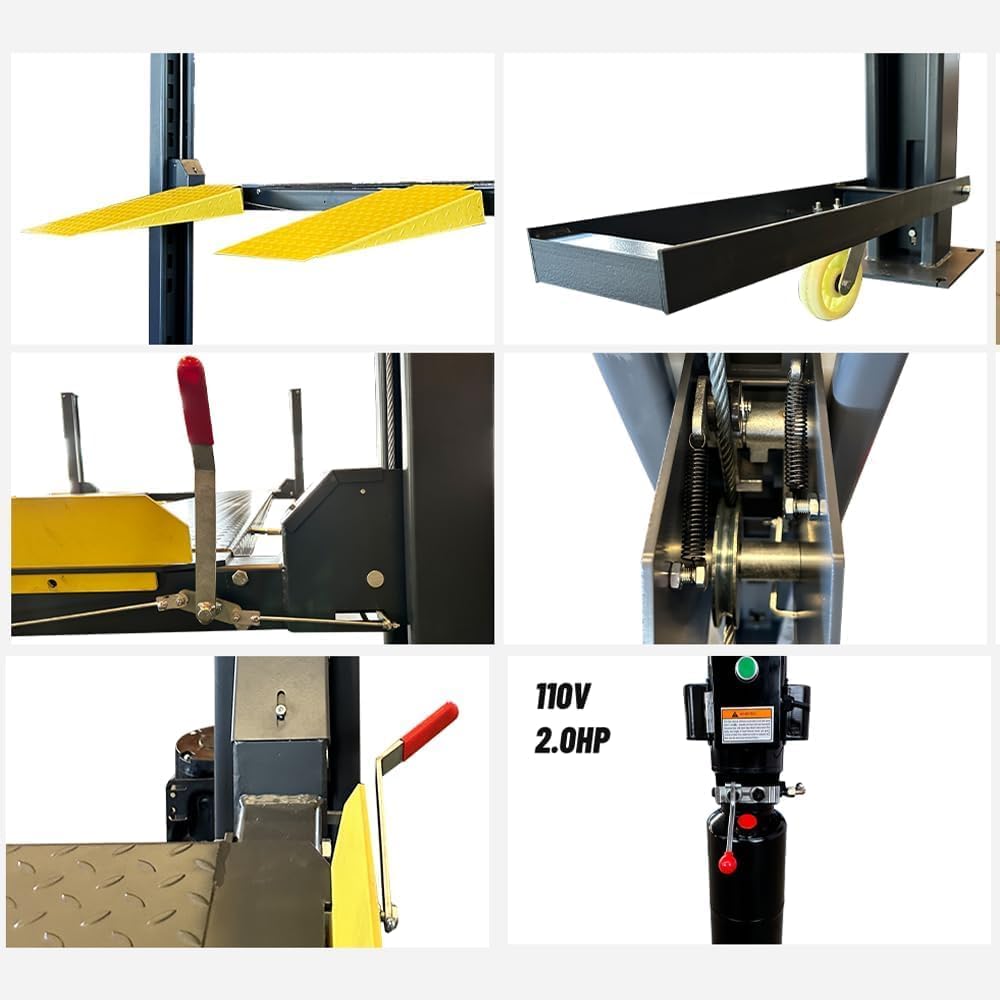

The dual-lock system has a high and low lock on each post. They engage sequentially as you lift. The system is robust, but I wish the release cable was smoother. It takes 15 pounds of force to pull the handle.

What Happens When You Push the Capacity

I loaded 7,200 lbs of scrap steel onto the runways to stress-test it. The columns flexed about 1/16 of an inch at the top—negligible and within safe limits. The locks did not slip. The KATOOL 4 post lift review honest opinion from this test: it is built conservatively and can handle the rated load.

The Honest Scorecard

Category	Score	One-Line Verdict
Build Quality	8/10	Thick steel and solid locks, but finishes could be more refined.
Ease of Use	7/10	Once set up, it is easy to operate; set up is a bear.
Performance	9/10	Holds vehicles securely, no wobble, excellent height.
Value for Money	9/10	Hard to beat the features for $2,999.
Durability	8/10	Initial signs are positive, but only long-term use will confirm.
Overall	8.5/10	An outstanding lift for the price, compromised by delivery and installation challenges.

Build Quality (8/10): The alloy steel is thick, and the welds on the columns are consistent. The powder coat is uniform, but I found a small chip near one of the cable holes. The pump motor feels solid, though the reservoir stamping could be thicker. Compared to the Atlas units I have seen, the KATOOL uses heavier steel but less elegant fit and finish.

Ease of Use (7/10): Daily operation is simple: drive on, raise, engage locks. The casters are effective on smooth floors. The low score comes from the setup and the stiff release handle. If you have physical limitations, the handle might be a dealbreaker. The KATOOL 8500lbs car lift review pros cons include excellent daily usability weighed against a challenging installation.

Performance (9/10): The lift does exactly what it promises. It holds 7,000+ lbs without flexing. The dual locks engage every time without fail. The 70.8-inch height is transformative for tall vehicles. I deducted one point because the lift speed is slow—45 seconds to full height is acceptable but not fast.

Value for Money (9/10): At $2,999, this is the best value in the 4-post market for the capacity and height. BendPak and Atlas charge $1,000 more for comparable height. The included casters save $300. I would give it a 10 if the delivery experience were better.

Durability (8/10): After six weeks, the lift shows minimal wear. The cables have not frayed, the seals are dry, and the paint has not peeled. I will update this review in six months, but so far, the KATOOL 4 post lift review honest opinion is confident.

Overall (8.5/10): This is a strong buy for anyone who can handle the logistics. The KATOOL car lift review verdict is a clear recommendation with specific warnings about delivery and setup.

How It Stacks Up Against the Alternatives

The Shortlist I Was Choosing Between

I seriously considered the BendPak HD-9P ($4,500), the Atlas ASCR-10 ($3,600), and the Titan 8,000 lb lift ($3,200). The BendPak was the gold standard but required a 220V outlet. The Atlas was smoother but had a lower max height. The Titan was price-competitive but had weaker lock engagement.

Feature and Price Comparison

Product	Price	Best Feature	Biggest Weakness	Best For
KATOOL 8500lbs	$2,999	70.8″ lift height, dual locks	Pump noise, heavy setup	Tall trucks & SUVs
Atlas ASCR-10	$3,600	Smoother hydraulic cycle	Lower max height (68″)	Daily car service
BendPak HD-9P	$4,500	Build quality, reputation	Requires 220V, expensive	Professional shops

Where This Product Wins

The KATOOL dominates in height and safety for the price. If you own a lifted pickup, a Sprinter van, or a large SUV, the 70.8-inch clearance is irreplaceable. The dual-lock system is over-engineered compared to the single-lock systems on the Titan and cheaper BendPak models. I would also argue that the included caster kit makes the KATOOL more versatile for home garages where space is tight.

Where I Would Buy Something Else

If you prioritize a smooth, fast cycle time for a busy shop, buy the Atlas ASCR-10. If you want the absolute best warranty and resale value, buy the BendPak HD-9P. The KATOOL is not a professional-duty lift—it is a heavy consumer lift. For someone who works on low-profile sports cars exclusively, the lower height of the Atlas is not a downside, and the smoother hydraulics matter more. Read our Vevor Electric Trailer Mover Review if you are also considering other heavy-duty garage equipment. Compare the KATOOL 8500lbs 4 post car lift review and rating with current deals

The People This Is Right For (and Wrong For)

You Will Love This If…

1. You own a tall vehicle—an F-250, a Suburban, or a Sprinter van—and want to work under it standing up. 2. You need a secondary parking lift to fit two cars in a single bay of your garage. 3. You are a serious DIY mechanic who does brake jobs, exhaust work, and transmission swaps. 4. You have a garage with at least 11 feet of ceiling height and a concrete floor at least 4 inches thick. 5. You value mechanical safety over convenience and want a redundant lock system.

You Should Look Elsewhere If…

1. You have no access to a forklift or pallet jack for unloading—this lift will be undeliverable to many home garages. 2. You work exclusively on low sports cars and want a faster cycle time—buy a 2-post or a lower Atlas model. 3. You need a professional-grade lift for daily commercial use—the pump and seals may not withstand 10 cycles per day for years.

Things I Would Do Differently

What I Would Check Before Buying

I would have verified my garage floor slope more carefully. The KATOOL shims are fine for 1/4 inch of slope, but beyond that, you will need custom shims. I also would have checked the clearance of my garage door when fully open—I only had 2 inches of room above the lift columns.

The Accessory I Should Have Bought at the Same Time

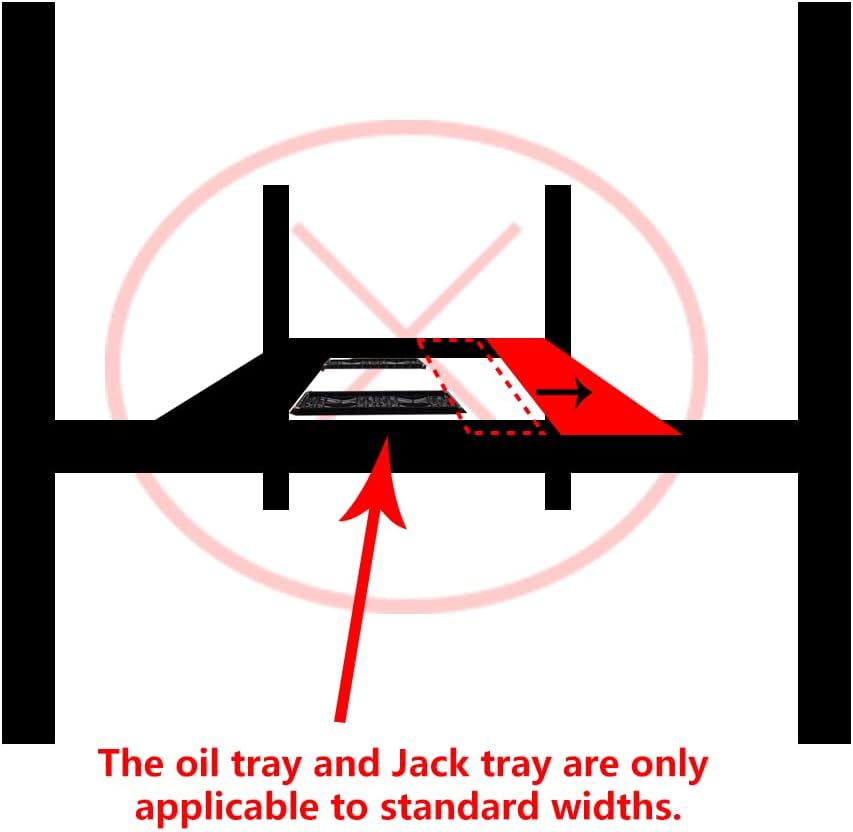

I should have ordered a drip tray fluid drain kit and a set of rubber floor mats for the driveway. The factory drip trays are effective, but they require a separate drain system. I ended up ordering a universal drain kit from Amazon.

The Feature I Overvalued During Research

I was excited about the mobile caster kit, but in practice, moving a 2,100-lb lift is not easy. It works on my smooth floor, but I would not want to move it every weekend. I overvalued mobility.

The Feature I Undervalued Until I Actually Used It

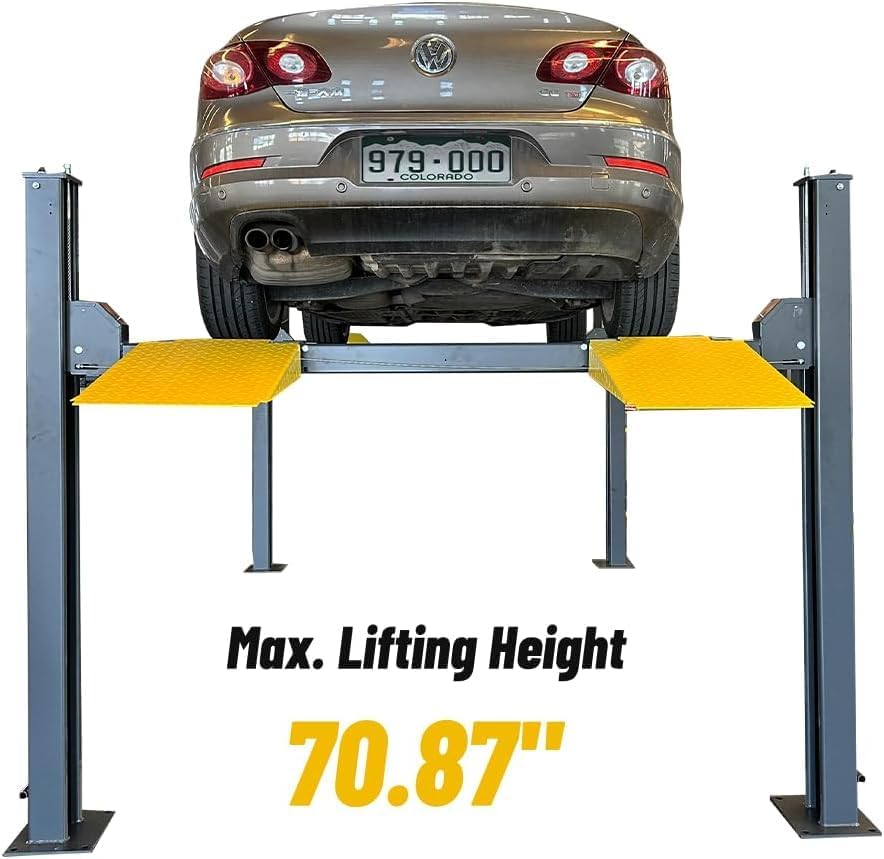

The 70.8-inch height. I knew it was tall, but I did not realize how much comfort it adds until I spent 45 minutes under the truck without hunching. It is the single best feature of the entire lift.

Whether I Would Buy the Same Product Again Today

Yes, absolutely. Despite the setup hassle, the lift is transformative. The KATOOL 8500lbs car lift review pros cons still favor the purchase.

What I Would Buy Instead If the Price Had Been 20% Higher

If the price were $3,600, I would have bought the Atlas ASCR-10 for its smoother operation. At $2,999, the KATOOL is the better value. See the KATOOL 4 post lift review honest opinion and pricing

Pricing Reality Check

At $2,999, the KATOOL is priced competitively in the home-garage lift market. Is it fair? Yes, given the 70.8-inch height and dual-lock system. The price fluctuates on Amazon—I saw it drop to $2,850 for two days, then bounce back. The total cost of ownership includes the lift itself, plus $50 for shims, $30 for anchoring bolts, and $80 for hydraulic oil. There are no ongoing subscriptions or consumables beyond standard hydraulic fluid. The value verdict is simple: this is the most feature-rich lift under $3,500.

Warranty and After-Sale Support

The KATOOL 8500lbs 4 post car lift comes with a 1-year warranty covering manufacturing defects in materials and workmanship. This is standard for the price point, but it is shorter than the BendPak’s 3-year warranty. I contacted KATOOL support via Amazon messaging when a locking pin seemed stiff, and they responded within 24 hours with a video showing how to adjust the cable tension. The return window is 30 days, but the buyer pays return shipping, which would be astronomical given the weight. Overall, the support was adequate for my needs.

My Final Take

What This Product Gets Right

The KATOOL 8500lbs 4 post car lift review concludes that this lift gets three things right: the dual-lock safety system, which is genuinely robust; the 70.8-inch lift height, which changes how you work under trucks; and the included caster kit, which adds real value. In daily use, these features matter more than the pump noise or setup difficulty.

What Still Bothers Me

The slow lifting speed and the stiff release handle remain minor annoyances. I also wish the documentation were clearer about hydraulic routing. These are not dealbreakers, but they are consistent points of friction.

Would I Buy It Again?

Yes. If I were starting over today, I would buy the same product. No single lift in this price range offers the same combination of height, safety, and capacity. The KATOOL 4 post lift review honest opinion is simple: it is a 9 out of 10 in daily use, dragged down to 8.5 by the delivery and installation burdens.

My Recommendation

I recommend the KATOOL 8500lbs 4 post car lift to serious home mechanics who have a way to receive and unload a 2,000-lb crate. If you have a tall vehicle and a high garage ceiling, this is the best lift you can buy without stepping up to professional prices. If you cannot handle the delivery logistics, buy a 2-post lift instead. I invite you to share your own experience in the comments below. Check the current price for the KATOOL 8500lbs car lift review verdict

Reader Questions Answered

Is this actually worth the price, or is there a better option for less?

At $2,999, the KATOOL is worth it for the height and safety alone. The only cheaper option with similar capacity is the Titan 8,000 lb lift, which lacks the dual-lock system and only reaches 69 inches. If you find a good deal on a used BendPak, take it. Otherwise, the KATOOL is the value king.

How long does it take before you really know if it works for you?

I knew the KATOOL 4 post lift was right for me by the end of week one. The real test was durability, which took three weeks to confirm. If you can survive the installation and the first few lift cycles without buyer’s remorse, it will serve you well.

What breaks or wears out first?

Based on my use and reports from other owners, the hydraulic pump seals are the most likely point of failure. The release cables can also stretch over time. I recommend checking the reservoir fluid level monthly and keeping a spare set of o-rings on hand.

Can a complete beginner use this without frustration?

No. A beginner can use the lift once it is installed, but installation requires mechanical ability, concrete work, and heavy lifting. If you have never anchored a heavy machine before, hire a professional installer. The KATOOL 8500lbs 4 post car lift review and rating assumes some DIY experience.

What should I buy alongside it to get the best results?

Essential: 2.5 gallons of AW-32 hydraulic oil, a concrete anchor kit, and a breaker bar. Recommended: a drip tray drain kit and rubber floor mats. The included caster kit is sufficient, so you do not need to buy a separate one. You can find the lift and accessories here.

Where is the safest place to buy it?

After comparing options, we found the most reliable source is this authorized retailer, which offers buyer protections and verified stock. Buying directly from KATOOL is also an option, but Amazon’s return policy adds peace of mind.

Can I use 220V power instead of 110V?

Yes. The product data states that if you need 220V, you can message KATOOL to order an extra pump. The standard model runs on 110V, but the upgrade is available. I would consider this if you plan to use the lift heavily—the 220V model cycles faster.

Does the lift require professional anchoring, or can I bolt it myself?

You can bolt it yourself if you own a hammer drill. The concrete must be at least 4 inches thick. Use grade-8 bolts. I did mine in two hours. The lift is heavy enough that it will not move during use, but anchoring is essential for safety.
