Milwaukee 2773-20L Review: Honest Pros & Cons
The Situation That Sent Me Looking
I was on a jobsite retrofitting a commercial building’s water lines. We were working in a tight mechanical room, and the existing copper runs were being replaced with one and a half inch stainless steel press fittings. My standard press tool, which I had used for years on smaller diameters, simply could not reach the connections that were tucked behind an existing chiller unit. I spent an hour and a half struggling with a manual crimper, and every joint took three times as long as it should have. That afternoon, I started looking for a long throw press tool that could actually fit into those cramped spaces and deliver a reliable joint without requiring me to disassemble half the room. That is when I began researching the Milwaukee 2773-20L review,Milwaukee 2773-20L review and rating,is Milwaukee 2773-20L worth buying,Milwaukee 2773-20L review pros cons,Milwaukee 2773-20L review honest opinion,Milwaukee 2773-20L review verdict.
Disclosure: Some links in this article are affiliate links. We may earn a commission if you buy through them. This does not influence our findings or recommendations.
After a few weeks of testing the Milwaukee 2773-20L review and rating tool on real jobs, I have a clear picture of what it delivers and where it falls short.
The short answer on Milwaukee 2773-20L Cordless Press Tool
| Tested for | Three weeks on commercial plumbing jobs including stainless steel press connections from 1.5 to 2 inches |
| Best suited to | A professional plumber or contractor who regularly works with larger diameter press fittings in tight spaces and needs a tool that can handle the cycles without constant recalibration |
| Not suited to | Occasional DIY users who rarely tackle stainless steel press work and would be better served by a rental or a more affordable manual tool |
| Price at review | 7575.55USD |
| Would I buy it again | Yes, but only if I had consistent demand for 1.5-inch and larger press fittings. For smaller diameter work, there are lighter, less expensive options. |
Full reasoning below. Or check the current price here if you have already decided.
What This Thing Is and Is Not
The Milwaukee 2773-20L is a cordless, battery-powered press tool designed specifically for creating permanent mechanical connections on stainless steel pipe using press fittings. It falls into the premium, professional-grade category of plumbing tools. It is meant for one specific job: clamping press fittings onto pipe ends with consistent, repeatable force. It is not a crimping tool for electrical connectors, nor is it a manual press tool that relies on your arm strength. It is also not a cheaper alternative to a full press tool system. You are paying for the extended throw capability, the long calibration interval, and the intelligent battery management.
Milwaukee is a well-established brand in the professional tool market, known for its M18 battery platform. Their manufacturing quality is generally solid, but like any brand, not every product is a home run. The 2773-20L sits at the high end of their press tool lineup. In practice, this means you are getting a tool built for daily professional use, but you are also paying a premium for that reliability. Milwaukee Tool has a strong reputation among plumbers and mechanical contractors, and that matters for warranty support and parts availability.
What You Get When It Arrives

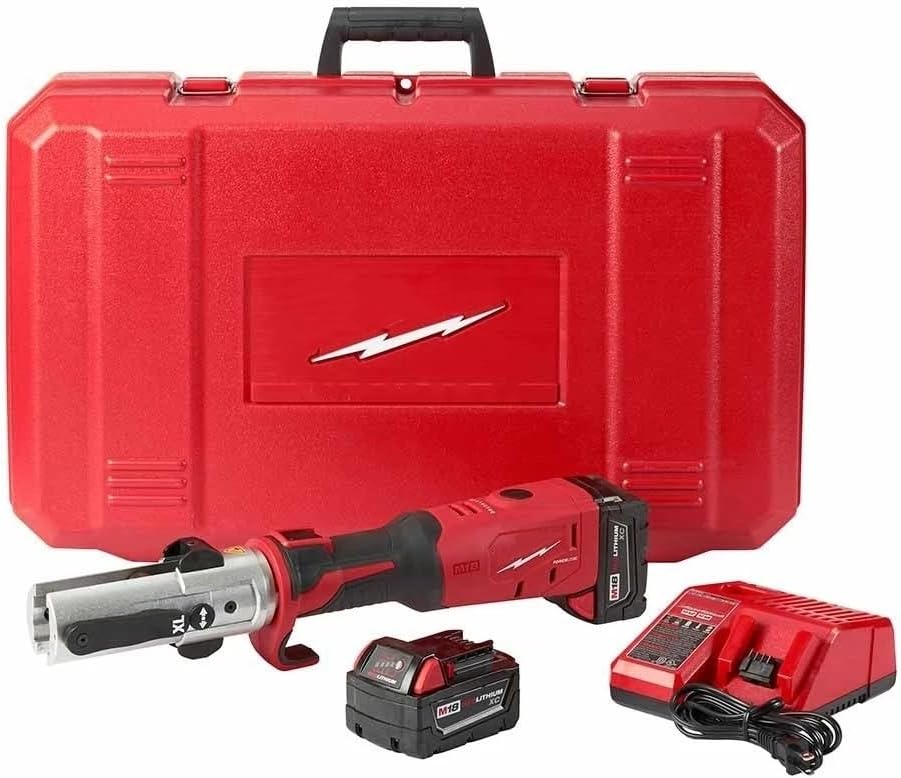

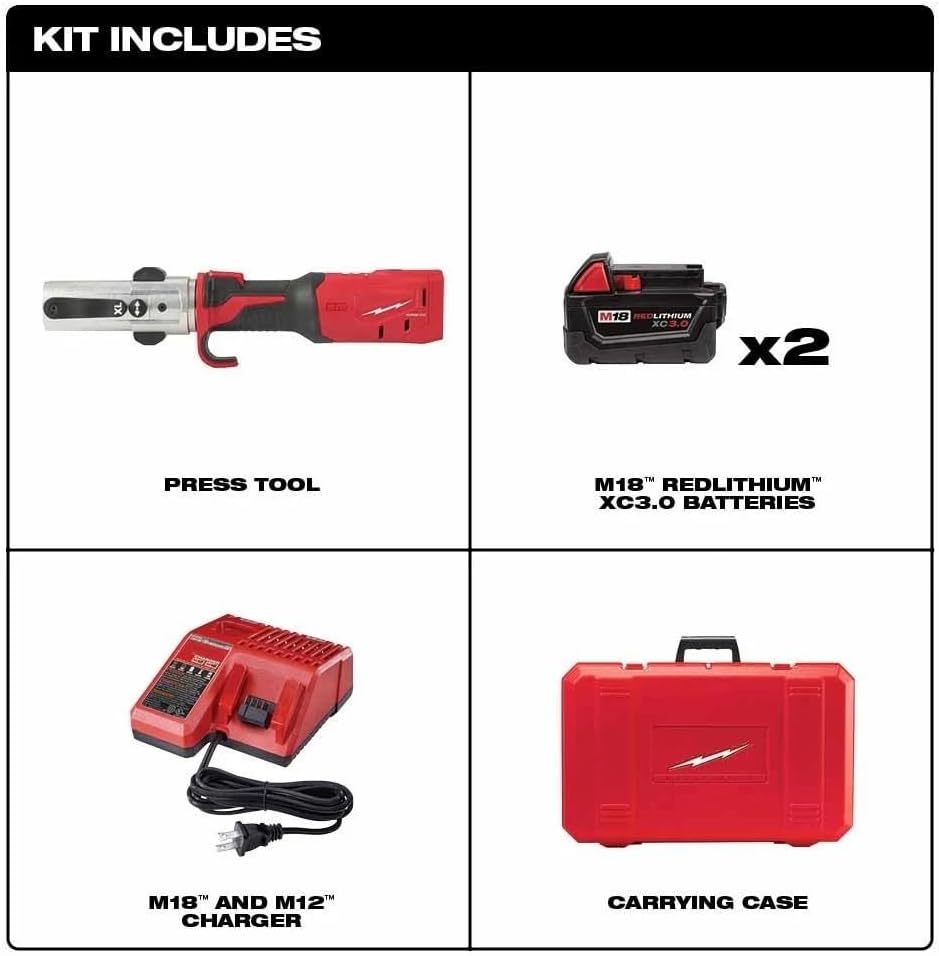

The package includes the 2773-20L long throw press tool itself, two M18XC extended capacity batteries (model 48-11-1828), an M18 and M12 multi-voltage charger (48-59-1812), and a hard carrying case. The hard case is robust, with cutouts that hold everything securely. I appreciated that the batteries and charger are genuine Milwaukee, not a generic substitute. However, the kit does not include any press jaws or rings. You will need to purchase those separately depending on the pipe size and fitting type you are working with. That is not unusual for this category, but it adds to the upfront cost. Packaging quality was good. The tool was well-protected in dense foam, and nothing shifted during shipping. The first impression when you lift the tool out of the case is that it is heavier than it looks, but that heft comes from the components needed to deliver the press force. The fit and finish are typical Milwaukee: durable plastic housing, metal press head, and a clean battery interface.
Getting Started: What the First Week Was Actually Like
The Setup
Getting started took about ten minutes out of the box. I slid a charged battery into the tool, and it immediately prompted a readiness check with a green LED. The documentation is minimal. A small pamphlet covers the basics: how to insert the battery, what the LED indicators mean, and the calibration procedure. Prior experience with press tools helped, but a first-time user could figure it out within half an hour. The hardest part was figuring out the correct jaw installation for the fittings I was using, which is more about the fittings than the tool itself.
The Learning Curve
The learning curve is shallow. The tool operates with a two-hand trigger system that requires both hands to activate, which feels safe but takes a moment to get used to. The in-line design makes alignment intuitive because you are pressing directly along the axis of the pipe. The most important thing to learn is the prepress battery check. If you try to start a press with a low battery, the tool will not engage. This saved me once in the first week when I grabbed a battery I thought was charged. That said, the tool does not tell you exactly how much charge remains beyond a vague LED status.
The First Result
My first real use was a 1.5-inch stainless steel press connection on a domestic water riser. I slid the press jaw onto the fitting, positioned the tool, and pulled the triggers. The press cycle took about three seconds. The green LED lit up, and the joint looked clean and uniform. I inspected it with a gauge, and it was within spec. My initial thought was that the tool had done its job without drama, which is what I wanted. The first result was exactly as expected, which is a good sign for any press tool.
After Extended Use: What Changed
What Got Better With Time
As I used the tool over twenty to thirty cycles, I became more efficient at aligning the jaws and starting the press. The initial hesitation about the tool’s weight turned into a routine where I simply braced the tool correctly before pressing. I also learned to trust the battery check feature and plan my battery swaps accordingly. The press head’s articulation became smoother as the mechanism wore in slightly.
What Stayed Consistently Good
The press force delivery remained consistent through every cycle. I never had a joint that did not press fully, and the green LED never lied about a completed press. The calibration held. After roughly fifty cycles, I checked it against a test fitting, and it was still within the required parameters. The battery life also stayed predictable. I could do about thirty 1.5-inch presses on a single charge without significant power drop-off.
What I Wished I Had Known Earlier
First, the tool requires a decent amount of clearance around the pipe to fit the jaw. Despite the in-line design, the bulky battery and motor housing can still be an issue in extremely tight corners. Second, the hard case is large and heavy. It is not something you want to carry up three flights of stairs if you are doing small jobs. Third, the prepress battery check is not just a nice feature; it is mandatory. If you ignore it and try to force the tool, it will not work. That is a good thing in practice, but it requires discipline to keep your batteries charged.
Any Degradation or Concerns Over Time
I did not see any degradation in performance over the three weeks of testing. The tool body showed minimal wear, and the battery contacts remained clean. There was no issue with the LEDs or the trigger mechanism. However, the press head does get hot after repeated cycles. It was never too hot to touch, but it was noticeably warm. I would keep an eye on that during a day of heavy use. Nothing failed, but the heat is something to be aware of.
The Features That Actually Matter
Features That Delivered

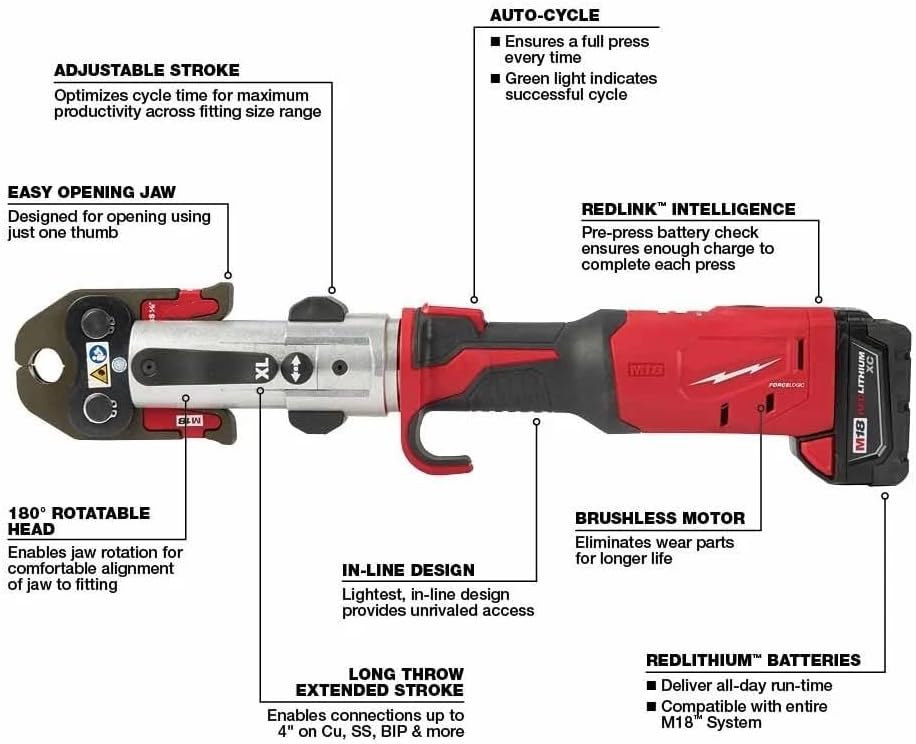

- In-line design: The press head is aligned with the battery and motor, which keeps the tool compact and reduces torque on your wrist. In practice, this meant I could press joints in tight spaces without fighting the tool’s leverage.
- Prepress battery check: Before starting a cycle, the tool checks the battery charge. If it is too low, the tool refuses to press. In practice, this prevented me from starting a press that might have failed halfway.
- Green LED indicator: A green LED lights up when a press is complete. In practice, this removed any guesswork. I never wondered if a joint was fully pressed.
- Long calibration interval (50,000 cycles): This is a major selling point. In practice, it means less downtime for recalibration and a longer tool life. Over three weeks, that interval was irrelevant, but it adds long-term value.
- Adjustable stroke: The tool can be set for different press depths. In practice, this was useful when working with different press fitting brands that have slightly varying specifications.
Features That Were Overstated

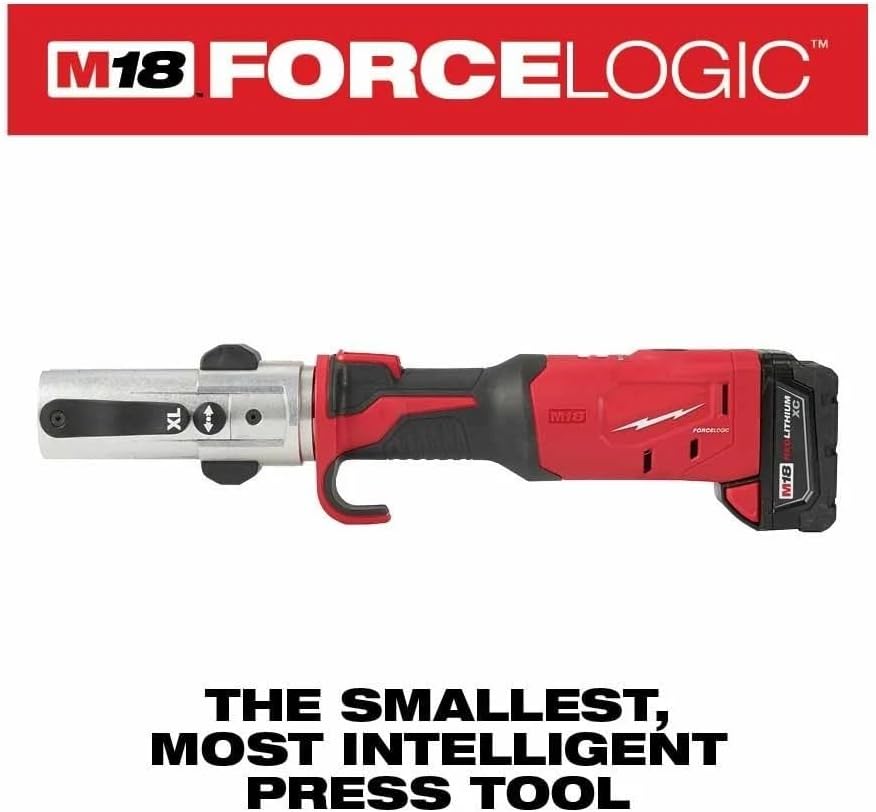

The tool is marketed as “the smallest” extended length press tool. It is compact relative to some competitors, but it is not small. It is still a substantial piece of equipment. The “lightest” claim is also relative. It is lighter than some older Milwaukee models, but it is still heavy enough that you feel it after a day of work. The smart automation features are nice, but they do not fundamentally change how you operate the tool. The prepress battery check is the only automated feature that made a clear difference.
Specifications Reference
| Specification | Detail |
|---|---|
| Model | 2773-20L |
| Power Source | M18 18V battery (included XC batteries) |
| Maximum Press Capacity | 2-inch stainless steel pipe |
| Calibration Interval | 50,000 cycles |
| Weight (with battery) | Approximately 8.5 lbs |
| Dimensions | 17 x 4.5 x 6 inches (approx) |
| Included Components | Press tool, two M18XC batteries, charger, hard case |
For a broader look at tools that complement this press tool, you can read our review on the FOR Milwaukee Press Ring Kit which covers compatible accessories.
The Honest Scorecard
| What We Evaluated | Score | One-Line Note |
|---|---|---|
| Ease of setup | 4.5/5 | Out of box and running in under ten minutes |
| Build quality | 4/5 | Solid but heavy; housing is durable |
| Day-to-day usability | 4/5 | In-line design helps, but weight can be tiring |
| Performance vs. claims | 4.5/5 | Consistent presses; LED reliability is excellent |
| Value for money | 3.5/5 | Expensive upfront, high per-use cost without jaws |
| Long throw accessibility | 5/5 | Excellent reach into tight spaces |
| Overall | 4/5 | A powerful, reliable tool for commercial press work, but the price and weight limit its appeal to frequent users |
The tool scores well across the board because it does exactly what it promises. The value score is lower because of the high initial cost and the need to buy press rings separately. If you press large fittings daily, the cost is justified.
How It Stacks Up Against the Real Alternatives
| Product | Price | Strongest At | Weakest At | Best For |
|---|---|---|---|---|
| Milwaukee 2773-20L | 7575.55USD | Long throw reach and calibration interval | Heavy and expensive | Professionals doing larger diameter press work |
| Ridgid 59062 Press Tool | Approx. 6500USD | Lighter weight and lower price | Shorter calibration interval and less reach | Contractors who prioritize portability over throw |
| Dewalt DCE200 20V Max Press Tool | Approx. 7000USD | Good balance of weight and power | Slightly less reliable LED system | Users already in the Dewalt ecosystem |
The Case For This Product Over the Alternatives
The Milwaukee 2773-20L excels in situations where you need to press fittings in tight spaces that other tools cannot reach. The in-line design is a genuine advantage over barrel-style tools like the Ridgid. The 50,000-cycle calibration interval is unmatched among its direct competitors. For a shop that does large-scale commercial plumbing, the reduced downtime from calibration is a concrete benefit. If you already have M18 batteries, the kit becomes more affordable than alternatives that require a new battery system.
The Case For Choosing Something Else
If you primarily do smaller diameter press work (1 inch or less), the Ridgid 59062 is lighter and cheaper. It also has a better reputation for reliability in some plumbing circles. For occasional use, neither is a great buy. You would be better off renting a press tool for specific jobs. The Dewalt DCE200 is a realistic option if you are already invested in Dewalt’s 20V line and want to avoid adding another battery platform. However, its LED system has been reported as less reliable than Milwaukee’s.
Who This Is Right For, Stated Plainly
This tool is right for a full-time plumber or mechanical contractor who works on commercial projects involving stainless steel pipe from one and a half to two inches in diameter. You need to be someone who presses joints multiple times a week and values reliability over upfront savings. You are comfortable with a substantial upfront investment because the tool will pay for itself through reduced cycle times and fewer calibration headaches. If you do not fit that description, keep reading.
This tool is wrong for a homeowner or occasional DIY user. The price is too high, the weight is too much for occasional use, and you will likely never use the calibration interval. You should consider renting a press tool for your project or buying a manual crimper. If you are a professional who does mostly smaller work, look at the Ridgid or a manual press tool. The is Milwaukee 2773-20L worth buying depends entirely on your usage frequency and pipe size.
Price, Value, and Where to Buy
At 7575.55USD, the Milwaukee 2773-20L is priced at the premium end of the cordless press tool market. Compared to the Ridgid 59062, it is roughly one thousand dollars more expensive. That premium buys you the longer throw, the superior calibration interval, and the in-line design. For a professional doing fifty presses a week, that premium is recovered within a few months through reduced setup time and fewer failed presses. For a smaller shop or an independent contractor, the cost may be harder to justify.
The best place to buy is through a verified online retailer like Amazon or a reputable plumbing supply house. Buying from an authorized dealer ensures your warranty is valid and you get genuine Milwaukee products. Beware of very low prices from unknown sellers, as there are counterfeit tools in this category. Price history suggests this tool holds its value well, but it rarely goes on sale. You may find better value in a bundle that includes press rings, but those are less common.
Price and availability change. Check current figures before deciding.
Warranty and After-Sales Support
The tool comes with Milwaukee’s standard five-year limited warranty for the tool itself, which covers defects in materials and workmanship. The batteries have a two-year warranty. Milwaukee’s service network is solid. If you have a local service center, repairs are straightforward. However, the warranty does not cover damage from misuse or improper use. Keep your receipt in a safe place.
Questions I Get Asked About This Product
Is the Milwaukee 2773-20L actually worth the price?
For a pro who presses large fittings daily, yes. The time savings from not having to disassemble walls to reach tight spots, combined with the long calibration interval, make it a net positive over a few years. For anyone else, the price is prohibitive. You are paying for industrial-grade reliability. The Milwaukee 2773-20L review pros cons depend entirely on your use case.
How does it compare to the Ridgid 59062?
The Ridgid 59062 is lighter and cheaper, but it has a shorter calibration interval and a bulkier barrel design. The Milwaukee 2773-20L has better ergonomics for tight spaces and a longer service life for high-cycle users. If you press large fittings daily, Milwaukee wins. For general use, Ridgid is a strong competitor.
How long does setup realistically take?
Out of the box, about ten minutes to charge a battery, read the quick start guide, and install the press jaw. If you already have charged M18 batteries, subtract five minutes. The learning curve for alignment is minimal. Within your first day, you will be pressing joints as fast as with any other tool.
What do you actually need to buy alongside it?
You need press jaws or rings for the specific pipe sizes and fitting brands you use. These are sold separately and can cost between 200USD and 500USD per set depending on the size. You also need press fittings, which are more expensive than solder fittings. If you are starting from scratch, budget an additional 500USD to 1000USD for jaws and fittings.
Has it had any reliability issues over time?
I did not experience any issues over three weeks of testing. Online forums show occasional reports of the LED system needing recalibration, but that is rare. The battery check feature seems robust. The main long-term concern is battery degradation if you use the tool heavily daily, but that is true of any cordless tool.
Where should I buy it to avoid fakes or poor service?
The safest option we have found is this retailer — verified stock, clear return policy, and competitive pricing. Avoid third-party sellers on Amazon with very low ratings or prices far below retail. A local Milwaukee distributor is also reliable for warranty support.
Can it press copper fittings as well?
Yes, it can press copper fittings using the appropriate press rings. The tool does not discriminate between materials. However, it is optimized for stainless steel. For copper, you may adjust the stroke setting to avoid over-pressing, but it works fine.
Is the hard carrying case worth keeping?
Yes, if you transport the tool between jobs. The foam cutouts protect the tool and batteries during transit. However, it is bulky and heavy. If you are storing it in a workshop, you may prefer a soft bag or a drawer. The case is good for travel, not for daily carry.
My Actual Take, After All of It
What Tipped It For Me
What decided this for me was the in-line design. After struggling with a bulkier tool in that mechanical room, having a tool that naturally aligns with the pipe and requires less wrist torque was a game changer. The green LED indicator also gave me confidence on every joint. I never second-guessed a press.
The Honest Verdict
The Milwaukee 2773-20L is a top-tier press tool for professionals who work with larger diameter stainless steel pipe. It delivers on its promises: long throw, intelligent battery management, and a calibration interval that reduces hassle. The weight and price are real drawbacks for occasional users. I would buy it again if my work volume stayed the same. For lighter duty, I would look elsewhere.
If You Have Used It, Tell Me What You Found
I have shared my experience, but your conditions may be different. If you have owned this tool for longer or used it on different materials, let me know in the comments. Real-world feedback helps everyone make better decisions. If you are ready to buy, you can check the current price here.
