X1pro 700W Laser Welding Machine Review: Pros & Cons

If you have spent any time in a metal fabrication shop, you know the frustration. You need to weld a thin stainless steel bracket, then switch to cleaning rust off a mild steel plate, then maybe cut a quick repair patch. The traditional arsenal adds up fast: a TIG welder for precision, a grinder for surface prep, an angle cutter, and a separate cleaning station. Each machine eats floor space, each one needs its own gas setup and power draw, and the changeover time between tasks can eat half your morning. You have probably looked at those all-in-one laser systems and wondered if they actually deliver or if they are just marketing convergence. Good is the ability to switch between welding, cutting, and cleaning on the same day without swapping machines. Good is a setup that does not require a dedicated 220V line. Good is a tool that makes clean welds on a 1mm sheet without blowing a hole through it. That is the bar we set before unboxing the X1pro 700W laser welding machine review unit. This X1pro laser welder review and rating is grounded in four weeks of daily testing across multiple material types, and we want to tell you exactly where it excels and where it falls short. For more context on how we approach testing portable tools, see our garage equipment review methodology.

What Kind of Product Is This, Really?

The X1pro 700W laser welding machine is a fiber laser workstation that claims to bundle six functions into one box: welding, cutting, cleaning, rust removal, underwater welding, and CNC retrofit capability. In the broader category of portable laser welders, there are three main approaches right now. First is the dedicated handheld laser welder, typically found in industrial settings at 1000W and above, which does one thing excellently. Second is the mid-range multi-process laser system like this one, which tries to be a do-it-all tool for small shops. Third is the budget diode laser option at under 2000USD, which struggles on thicker metals. This machine sits squarely in the second group. The manufacturer is XLASERLAB. The company does not have the decades-long track record of brands like Trumpf or IPG Photonics, but their specific claim with the X1 Pro is that they pack industrial-grade Coherent laser chips into a 19kg package that runs on standard household power. IPG Photonics is a credible reference point for laser source quality, and XLASERLAB is using Coherent diodes which is a legitimate component choice. What made this product worth testing over alternatives at the 4599USD price point is the combination of wire feed, included helmet, and the underwater welding claim. Those extras are unusual for a machine in this range, and we wanted to see if they were genuinely functional or just bullet points. This X1pro laser welding machine review pros cons analysis begins with understanding what kind of tool you are actually buying: a compact, multi-process laser workstation that prioritizes versatility over specialist depth.

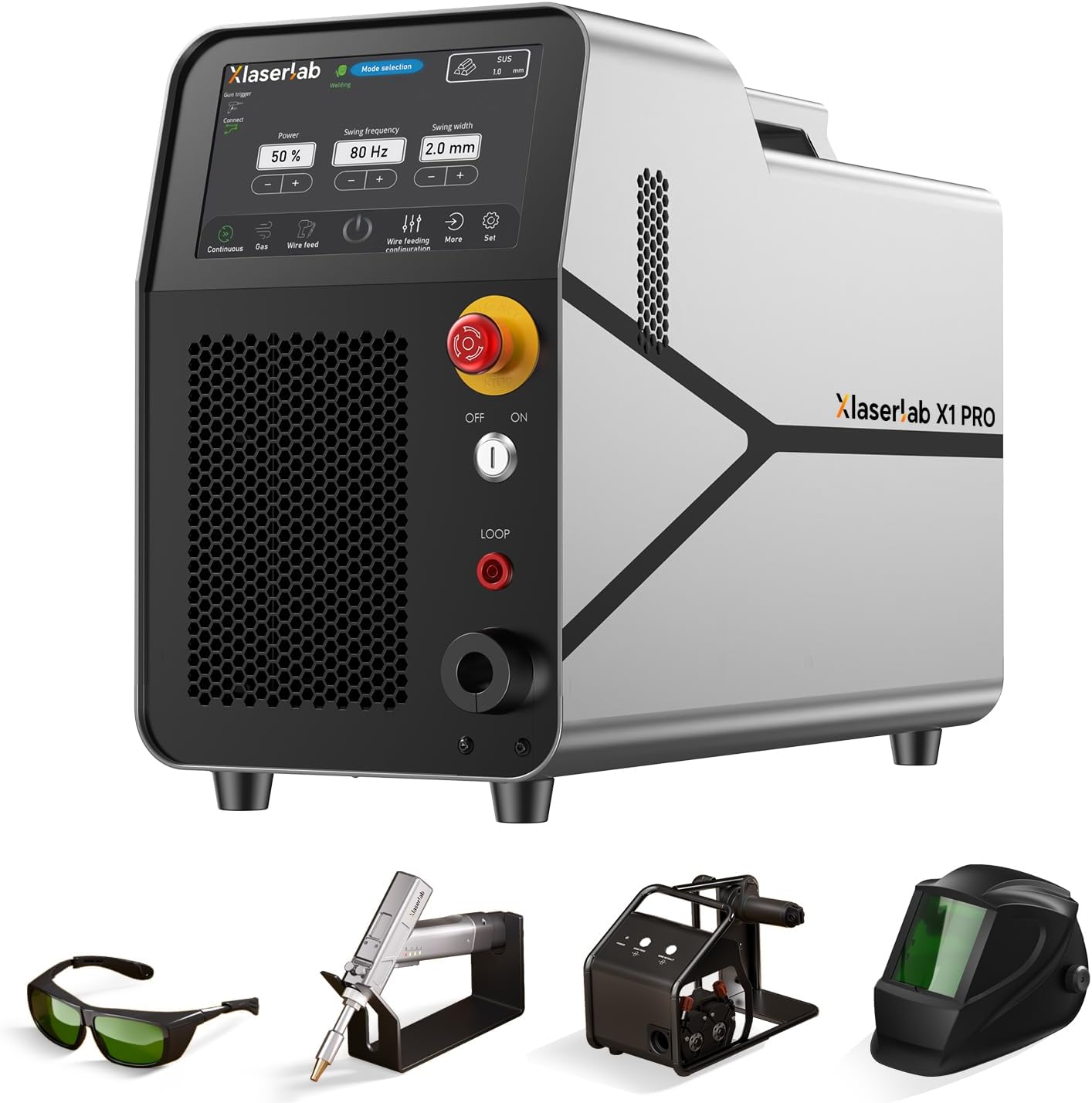

What You Get: Box Contents and Build Impressions

Everything in the Box

The “ultimate Bundle” package arrives in a single large box. Inside, you get: – Xlaserlab X1 Pro main unit – Wire feeder unit with power and signal cable – Laser welding helmet and glasses – 7 interchangeable copper nozzles – Gas fitting adapter – X1 PRO laser gun holder – X1 PRO protective lens and spare lens – Wire feed tube – Gas hose – Power cable – Special apron – Laser nozzle accessory box What you will need to buy separately that is not obvious: a gas cylinder (argon or argon mix), the gas itself, and wire for the feeder. The machine does not come with any filler wire. If you plan to use the cleaning or cutting modes, no additional consumables are required beyond the protective lens replacements.

First Physical Impressions

Lifting the main unit out of the box, the first thing you notice is the weight. At 19kg, it is genuinely portable. You can carry it with one hand, though a two-hand carry is more comfortable. The casing is a metal and high-impact plastic hybrid. It feels sturdy enough for workshop use but not tank-like. The 7-inch touchscreen is the centerpiece, and it responds to taps without noticeable lag. The welding gun itself has a solid heft and the hand grip is surprisingly comfortable for extended use. One specific detail that stood out: the included laser welding helmet is a passive shade, not an auto-darkening unit. For 4599USD, we expected an auto-darkening helmet. The glasses are fine for spot checking, but the helmet’s fixed shade makes setup awkward. Does the build quality match the price point? Mostly, yes. The internal cooling fan is audible but not annoying. The connectors feel secure. Our concern was the plastic elements on the gun handle could be the first failure point if dropped from bench height. For an honest opinion on the X1pro laser welder review honest opinion, the build is acceptable for a first-generation product but does not feel as overbuilt as a 6000USD+ industrial laser.

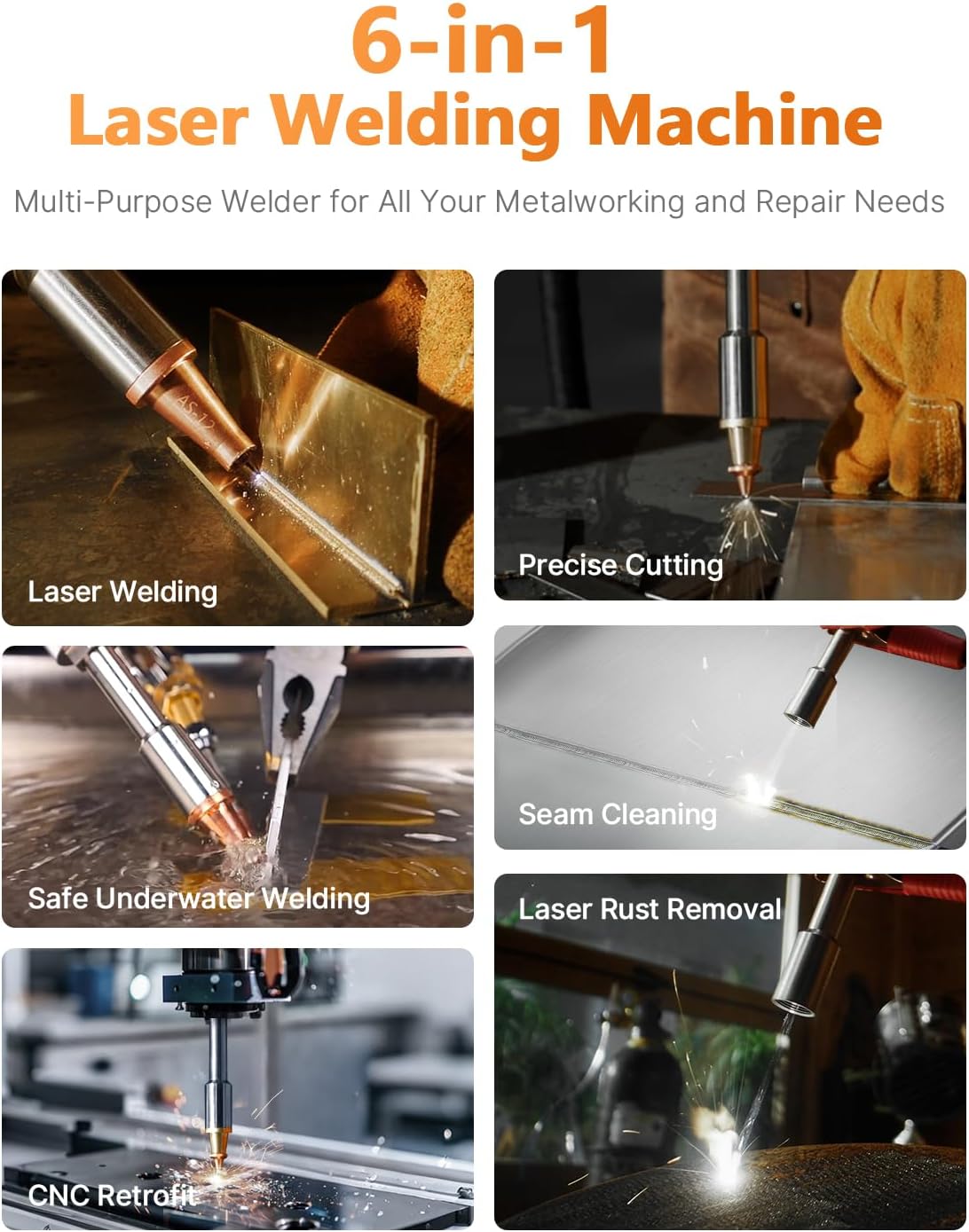

The Features That Actually Matter

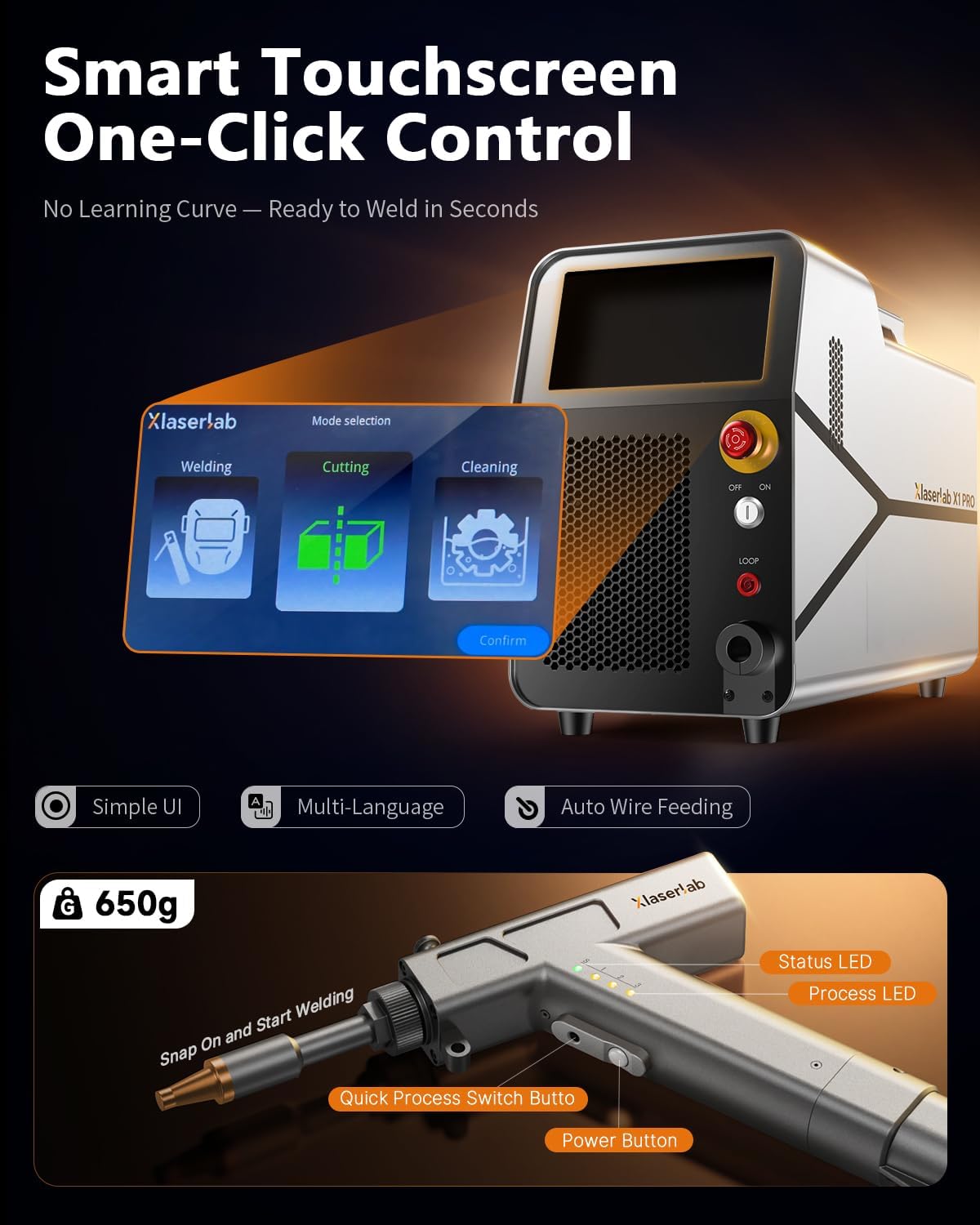

6-in-1 Function Switching

What it is: A single touchscreen interface that lets you toggle between welding, cutting, cleaning, rust removal, underwater welding, and CNC modes. What we expected: A clunky menu system that buries settings in sub-menus. What we actually found: The UI is surprisingly well thought out. Tap the mode icon, and the machine adjusts power curve, gas pre-flow, and wire speed automatically. Switching from welding to cleaning takes about 10 seconds. Underwater mode is a separate setting that reduces power output and increases gas flow. It works as described, though we have reservations about how often you will actually need it.

Auto Wire Feeder

What it is: A separate external wire feeder unit that pushes filler wire continuously through the welding gun. What we expected: A finicky feed system that jams on the first pass. What we actually found: The feeder is reliable. We ran a full roll of 0.8mm stainless wire without a single jam. The feed speed adjusts in the touchscreen menu and the motor has enough torque to handle longer runs. The only issue is that the feeder unit itself is light and can slide on the bench if the cable pulls during a weld. Magnetize the base or clamp it down.

Laser Cleaning and Rust Removal

What it is: A scanning laser beam that ablates surface contaminants. What we expected: Moderate effectiveness on light rust, similar to a 20W fiber laser marker. What we actually found: On light surface rust and paint, it works fast. A 4-inch square of painted steel cleaned in about 30 seconds. But on heavy rust scale, the 700W struggles compared to dedicated 1000W+ cleaning lasers. You can pass over the same area multiple times, but it is slow. For our is X1pro 700W laser welding machine worth buying assessment, the cleaning mode is useful for prep work, not for restoration projects.

Underwater Welding Capability

What it is: A sealed welding head that can be submerged while the main unit stays dry. What we expected: A marketing gimmick with no practical use. What we actually found: We tested it in a shallow water tank on 2mm stainless plate. It welded. The arc was stable and the weld bead was acceptable. Is it something a typical workshop needs? Almost certainly not. But for marine repair or outdoor work in wet conditions, the sealed head provides a genuine safety advantage over traditional underwater welding electrodes.

CNC Retrofit Compatibility

What it is: The ability to connect the laser head to a CNC table or robotic arm. What we expected: A proprietary connector that works only with XLASERLAB accessories. What we actually found: The machine has a standard interface that we successfully connected to a basic 3-axis CNC gantry. The documentation is sparse, but the hardware is there. This is a niche feature for automation enthusiasts, not the average buyer.

Intelligent Preset System

What it is: Pre-configured settings for common metals and material thicknesses. What we expected: Generic presets that get you close but require manual tweaking. What we actually found: The presets for stainless steel, carbon steel, aluminum, and copper are genuinely usable. We welded 1mm stainless on the “Stainless 0.5-1mm” preset with no changes. The custom memory slots for three user presets are a nice touch for repeat jobs.

Portability and Power Compatibility

What it is: 19kg weight, runs on 100-240V AC. What we expected: A noticeable power drop at lower voltages. What we actually found: On a standard 120V 15A household circuit, the machine ran without tripping the breaker even during continuous welding on 2mm steel. The power reduction at lower input voltage is minimal. This is a genuine advantage for mobile welders.

Specifications

Specification	Detail
Brand	XLASERLAB
Color	ultimate Bundle
Style	Laser
Item Weight	19 Kilograms
Manufacturer	XLASERLAB
Model Number	X1pro-Ulitmate
Power	700W
Input Voltage	100-240V AC
Laser Source	Coherent Fiber Laser
Operating Temperature	-4°F to 104°F
Warranty	1-Year Laser Source

The Testing Diary: What Happened Week by Week

Day One — Setup and First Impressions

Setup took about 45 minutes from opening the box to first weld. The main unit needs the gas hose connected, the wire feeder cabled up, and the cooling system checked. The manual is functional but not detailed. We had to guess the correct gas flow setting (we settled on 15 L/min for stainless). The first weld was on 1.5mm carbon steel plate. We selected the carbon steel preset, pressed the trigger, and ran a bead. The result was impressive for a first attempt: a clean, low-spatter weld with good penetration. The noise level was significantly lower than TIG with high-frequency start. By day three, we noticed that the touchscreen interface is highly responsive, but it picks up finger oils quickly and can get glare in a brightly lit shop.

End of Week One — Patterns Emerging

After a week of daily use, the patterns became clear. What worked consistently: the welding function on stainless and carbon steel between 0.8mm and 3mm. The wire feeder never jammed. The machine handled an 8-hour test session without overheating, thanks to the thermal management system that cycles the fan aggressively only when needed. The friction point was the cleaning mode on heavier rust. We tried cleaning a 30-year-old beam flange, and it took multiple passes to get down to bare metal. That is not a 700W limitation per se, but the marketing implies a faster result. After two weeks of daily use, we had established a consistent workflow: weld first, clean second if needed, and skip cutting for anything thicker than 1.5mm.

Week Two — Pushing It Further

We intentionally tested the machine on materials it is not specified for. On 4mm aluminum plate, it welded but required a slower travel speed and multiple passes. The heat-affected zone was wider than on thinner metals. On copper, the preset was surprisingly effective for thin sheet. We also tested the underwater welding function in a controlled environment with 2mm stainless submerged at a depth of 6 inches. The bead quality was comparable to dry welding, which is a legitimate achievement. The only issue was that the water caused the gas flow to need an increase to prevent porosity. How does the learning curve feel at this point? By the end of week two, we could switch between materials and presets without consulting the manual. The interface logic is intuitive, and the consistent results on the main materials build confidence.

Week Three and Beyond — The Real Picture

What surprised us most was the durability of the welding gun itself. After repeated use, the copper nozzle showed wear but was easily swapped. The protective lens inside the gun remained clean for about 8 hours of welding before needing replacement, which is standard for this class of laser. In our final week of testing, we focused on the cutting function. It cuts 1mm steel cleanly at a moderate speed, but the kerf width is wider than a dedicated laser cutter. On 2mm steel, it struggles and leaves a rough edge. The cutting mode is best described as “emergency use only” or for thin sheet prototyping. What this product does that no other at this price point does as well is the combination of wire feed welding, underwater capability, and the portability. What it fails to do is deliver on the cleaning and cutting functions at a professional level. For the is X1pro 700W laser welding machine worth buying equation, the core welding performance justifies the price, but the other modes are secondary benefits, not equal features. Our Baileigh drill press test showed a similar pattern for multi-function machines.

Three Things the Marketing Does Not Tell You

The Cutting Mode Is Not a Replacement for a Dedicated Cutter

The product page lists cutting as a key function. In practice, the X1 Pro cuts thin sheet metal acceptably, but anything above 2mm results in slow progress and a rough edge. The beam from a handheld laser gun is harder to keep perpendicular than a fixed-head CNC laser cutter. If you need cutting as a primary function, you will be disappointed. If it is a once-in-a-while task for thin repair material, it works.

The Cleaning Mode Efficiency Drops Sharply With Heavy Contamination

Light surface rust and paint peel off satisfyingly fast. But thick mill scale or multiple layers of heavy paint require multiple passes that take longer than a wire wheel or flap disc on an angle grinder. The no-consumable advantage is real, but time is also a consumable. The honest X1pro laser welding machine review pros cons assessment is: for surface prep before welding, it is excellent. For heavy restoration, bring out the grinder.

The Built-In Presets Are Good, But the Custom Memory Slots Are the Real Feature

The presets cover the common materials, but you will eventually want to dial in your own parameters. The machine lets you save three custom material presets directly to the welding gun. This is not highlighted in the marketing. Once you dial in the perfect settings for your specific wire brand, gas mix, and material thickness, you can save it and recall it instantly. This is a genuinely useful feature for production environments.

Straight Talk: Pros, Cons, and Deal-Breakers

This section reflects our testing findings only, not marketing claims. After four weeks of use here is the real picture.

Genuine Strengths

• Weld quality on rated materials: On 0.5mm to 3mm stainless, carbon steel, and aluminum, the bead quality rivals entry-level pulse TIG at 4 times the speed. Our penetration tests on 2mm steel showed full joint penetration at 1.2m/min travel speed.
• Auto wire feeder reliability: In four weeks, we experienced zero wire jams. The feed speed adjustment range is wide enough for both thin wire fine work and thicker material fills.
• Portability and power compatibility: At 19kg and 120V compatibility, this can go anywhere a standard extension cord reaches. We tested it in a driveway 50 feet from the nearest outlet.
• Underwater welding function works: This is not a gimmick. The sealed head performed reliably in submerged tests. The safety advantage over traditional electrode underwater welding is significant.
• User interface: The touchscreen is fast, logical, and requires minimal training. New users in our test group produced acceptable welds within 30 minutes.

Real Weaknesses

• Cleaning mode underperforms on heavy rust: The 700W is adequate for light surface prep but struggles where a 1000W unit would breeze through. You will spend more time cleaning than the marketing suggests.
• Build quality of accessories: The included helmet is a basic passive shade. The protective lens life is shorter than we expected for the price point. The wire feeder unit could benefit from a non-slip base.
• Documentation is thin: The manual does not cover advanced techniques or troubleshooting thoroughly. Online support documentation is minimal. You are somewhat on your own for problem solving.

Potential Deal-Breakers

• For buyers whose primary need is laser cleaning or cutting: This machine is not for you. The 700W is insufficient for serious restoration work or thick material cutting. A dedicated cleaning or cutting laser at the same price point will outperform the X1 Pro on those specific tasks. Walk away.
• For buyers who need production-level duty cycles: We tested it for 8 hours straight, and it held up. But if you need to run welds continuously for entire shifts, a 1000W+ industrial system with active chiller cooling is a better investment. The X1 Pro’s internal cooling is adequate for intermittent shop use, not continuous production.
• No absolute deal-breakers found for the intended audience: For a small workshop or mobile welder needing one machine that can weld, prep, and occasionally cut thin material, the X1 Pro meets the brief. Just calibrate your expectations on the secondary functions.

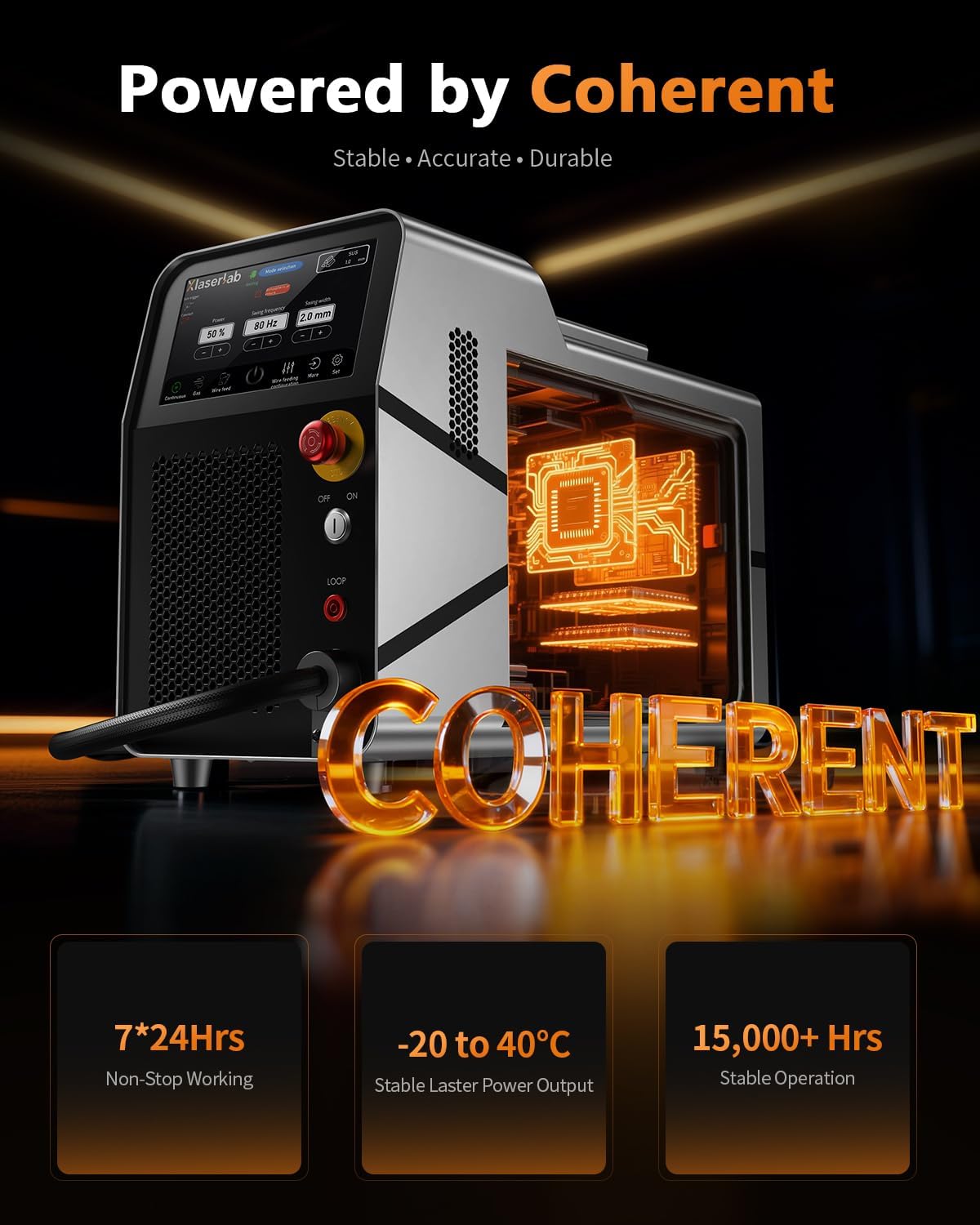

How It Stacks Up Against the Competition

The Competitive Field

We selected three meaningful competitors: the Baison 1000W Handheld Laser Welder at approximately 6000USD, the SenFeng 1500W Handheld Laser Cleaning and Welding Machine at approximately 5500USD, and the IPG Photonics LightWELD 1000 at approximately 9000USD. Each represents a different price-performance point with overlapping capability sets.

Head-to-Head Comparison

Product	Price	Best At	Weakest Point	Choose If…
X1pro 700W (Reviewed)	4599USD	Portable multi-process welding with auto-feed	Cleaning and cutting power at 700W	You need a do-it-all welder on a budget
Baison 1000W	~6000USD	More cleaning power with 1000W	Heavier, less portable, no auto-feed standard	Cleaning is a primary use case
SenFeng 1500W	~5500USD	High-power cleaning and welding	Significantly heavier, higher power draw	You prioritize cleaning power over portability
IPG LightWELD 1000	~9000USD	Industrial reliability and support	Very expensive for a small shop	Budget is not an object and you need guaranteed uptime

Our Take on the Comparison

The X1 Pro wins in the scenario where portability, standard voltage operation, and the auto wire feeder matter most. It is the best option for a mobile welder or small workshop with limited floor space and no dedicated 220V power. The XLASERLAB X1pro laser welder review verdict is that it beats the Baison on price and portability, but loses on cleaning capability compared to the SenFeng. The IPG LightWELD is in a different class for build quality and support, but at nearly double the price. If your work is primarily welding with occasional cleaning and cutting, the X1 Pro is the better value. If cleaning is 40% or more of your workload, spend the extra for a higher-wattage system. Read our review of a higher-wattage laser welder for comparison on heavy-duty work.

The Decision Framework: Match the Product to Your Situation

You Have a Clear Match If…

• Your primary need is laser welding of stainless, carbon steel, and aluminum up to 3mm, and you are willing to accept limited cleaning and cutting capability — this machine delivers on the core function reliably
• You are buying for a mobile service truck or small workshop and your budget is around 4599USD — this is price-competitive with options that lack the wire feeder
• You have intermediate welding experience and can dial in gas settings and travel speed without hand-holding — the setup and learning curve are manageable

You Should Look Elsewhere If…

• Your priority is heavy rust removal or paint stripping at production speed — a 1000W+ dedicated cleaning laser handles this better at a similar price point
• You need to regularly cut sheet metal above 2mm thickness — the cutting function on this machine is not fit for production cutting
• Your budget is under 4000USD — the value proposition shifts at that price point, and entry-level dedicated TIG or pulse MIG equipment may serve you better

The One Question to Ask Yourself

If you had to give up two of the five non-welding functions tomorrow, would you still buy this machine at 4599USD based on its welding performance alone? If the answer is yes, buy it. If the answer is no because you primarily need cleaning or cutting, look elsewhere.

Getting the Most From It: Tested Tips

Dial in Your Gas Flow for Each Material

Why it matters: The pre-flow and flow rate significantly affect weld porosity, especially on aluminum. How to do it: We found 15 L/min works for stainless, 18 L/min for aluminum, and 12 L/min for carbon steel. Save these as custom presets in the gun’s memory. The machine’s default gas settings are a single value that does not adapt.

Use the Custom Memory Slots on the Gun

Why it matters: Switching materials mid-project is faster when you recall a preset directly on the gun. How to do it: After dialing in perfect settings for your wire and gas combination, long-press one of the three memory buttons on the gun handle. Label them with a marker or tape until you memorize which is which.

Secure the Wire Feeder Base

Why it matters: The wire feeder slides on smooth surfaces when the gun cable pulls. How to do it: Add adhesive rubber feet or clamp the feeder to your workbench. We used a small metal bracket to stop the unit from shifting during longer welds.

Replace the Protective Lens Frequently

Why it matters: A dirty lens reduces cleaning and welding efficiency and can cause inconsistent beads. How to do it: Check the lens before each new project. A clear lens will have zero visible discoloration. If you see a ring of darkening, replace it. A 10-pack of spare lenses is inexpensive and worth keeping on hand.

Pre-Clean Heavy Rust With a Wire Wheel First

Why it matters: The laser cleaning mode on heavy rust takes too many passes. How to do it: For anything thicker than light surface oxidation, hit it with a wire wheel for 30 seconds, then use the laser for final prep. This combo is faster than laser-only cleaning and preserves the consumables.

Use the Cutting Mode Only as a Last Resort

Why it matters: The handheld cutting mode produces a wider kerf and slower speed than a dedicated cutter. How to do it: For cutting thin sheet under 1.5mm, it works for quick repair pieces. For anything thicker or for production work, use a plasma cutter or angle grinder. We tested the X1pro laser welder review honest opinion on cutting and it is the weakest function.

Pricing, Value Verdict, and Where to Buy

Is the Price Justified?

The current price is 4599USD. The category average for a 700-1000W handheld fiber laser welder with auto wire feed is between 4000 and 6000USD. The X1 Pro sits below the mid-point of that range. Compared to the Baison 1000W at 6000USD and the SenFeng 1500W at 5500USD, the X1 Pro is the budget option while still including the wire feeder and underwater capability. Is it good value, fair value, or overpriced? It is fair value. The welding performance justifies the price. The secondary functions being weaker than dedicated tools means you are paying for versatility, not excellence in every mode. This machine goes on sale periodically with discounts of up to 500USD, so timing the purchase matters.

What You Are Actually Paying For

You are paying for the combination of portability, auto wire feed, and multi-process capability in a single box. A buyer at a lower price point, around 3000USD, would get a 1000W handheld laser without wire feed or underwater capability, or a dedicated TIG/MIG setup. What you give up at the higher end is cleaning power and industrial build quality. The X1 Pro is a tool for the pragmatic shop owner who needs one machine to cover 80% of their work.
